Hikvision Hm-td2618-7/g0/t1a Heatpro Thermal & Optical Bi-spectrum Network Bullet Camera
SKU: HMTD26187G0T1A
$904.63

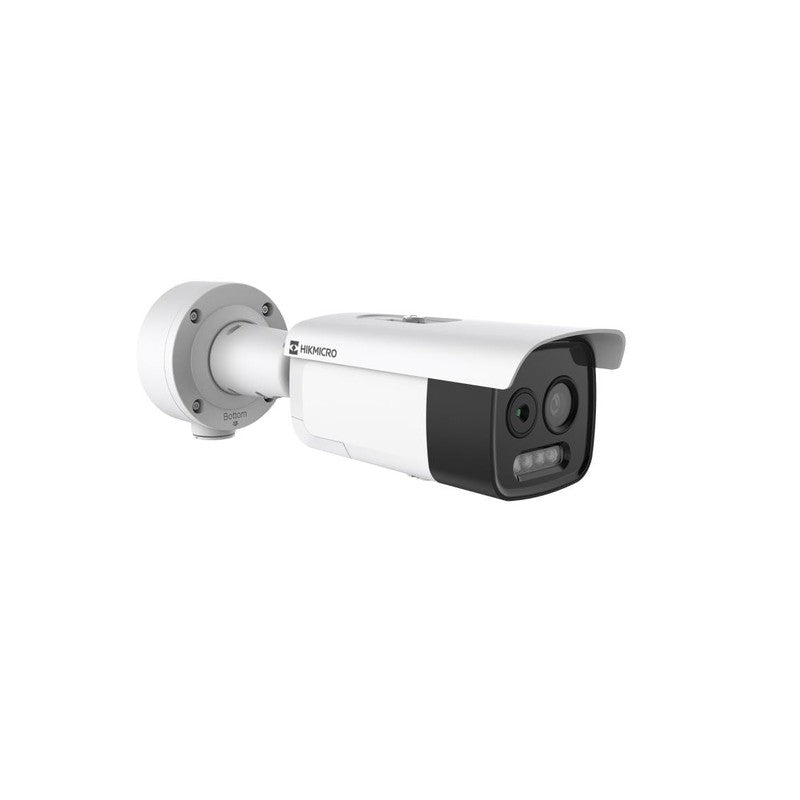

The Hikvision HM-TD2618-7/G0/T1A HeatPro is a bi-spectrum network bullet camera designed for industrial perimeter protection, integrating a 160 x 120 thermal sensor with a 5MP optical camera in a single IP67-rated housing. This unit provides simultaneous thermal and visual verification, enabling the detection of heat signatures through darkness, smoke, and dust conditions that defeat standard visible-light sensors.
Key Features
- 160 x 120 VOx uncooled focal plane array with ≤25 mK thermal sensitivity for high-precision heat signature detection.
- Co-mounted 5MP optical camera for simultaneous visual verification of thermal alerts without system switching.
- Dynamic fire point and smoking detection algorithms that analyse the thermal stream to trigger early-warning alerts.
- Point, area, and line-based temperature measurement rules covering a range of -20°C to 150°C, supporting up to 8 VCA rules.
- Active deterrence system featuring a built-in strobe and audio alarm for immediate on-site response.
- Smart hybrid illumination reaching up to 60 m and AI-powered human and vehicle classification for accurate target identification.
- IP67-rated bullet housing suitable for demanding outdoor environments, powered via 12V DC or PoE+ (802.3at).
- Local storage capability via MicroSD card support up to 512 GB for independent data retention.
Technical Specifications
| Model | HM-TD2618-7/G0/T1A |
| Camera Type | Thermal and optical bi-spectrum network bullet camera |
| Thermal Sensor | 160 x 120 Vanadium Oxide (VOx) uncooled focal plane array |
| Pixel Pitch | 12 µm |
| Spectral Range | 8-14 µm |
| Thermal Sensitivity (NETD) | ≤25 mK |
| Thermal Lens | 6.9 mm fixed |
| Thermal Field of View | 24.9° x 18.7° |
| Thermal Digital Zoom | x2, x4 |
| Optical Sensor | 1/2.7″ 5MP progressive scan CMOS, 2688 x 1944 |
| Optical Lens | 8 mm fixed |
| Optical Field of View | 39.4° x 22° |
| Minimum Illumination | 0.0089 Lux |
| WDR | 120 dB |
| Temperature Measurement Range | -20°C to 150°C (point, area, and line rules) |
| Smart Detection | Line crossing, intrusion, region entrance, region exit, fire point detection, smoking detection, temperature measurement rules (up to 8 VCA rules) |
| Illumination | IR up to 60 m, white light alarm up to 60 m, smart hybrid mode |
| Alarm Output | Built-in strobe and audio alarm with preset or custom voice alerts |
| Video Compression | H.265, H.264, MJPEG |
| Max Frame Rate | 25/30 fps |
| Interfaces | 1 x RJ-45 10/100 Mbps, 1 x audio input/output, 2 x alarm inputs, 2 x alarm outputs, 1 x MicroSD slot (up to 512 GB) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +65°C |
| Power Supply | 12V DC or PoE+ (802.3at) |
| Protocol | ONVIF compatible |
