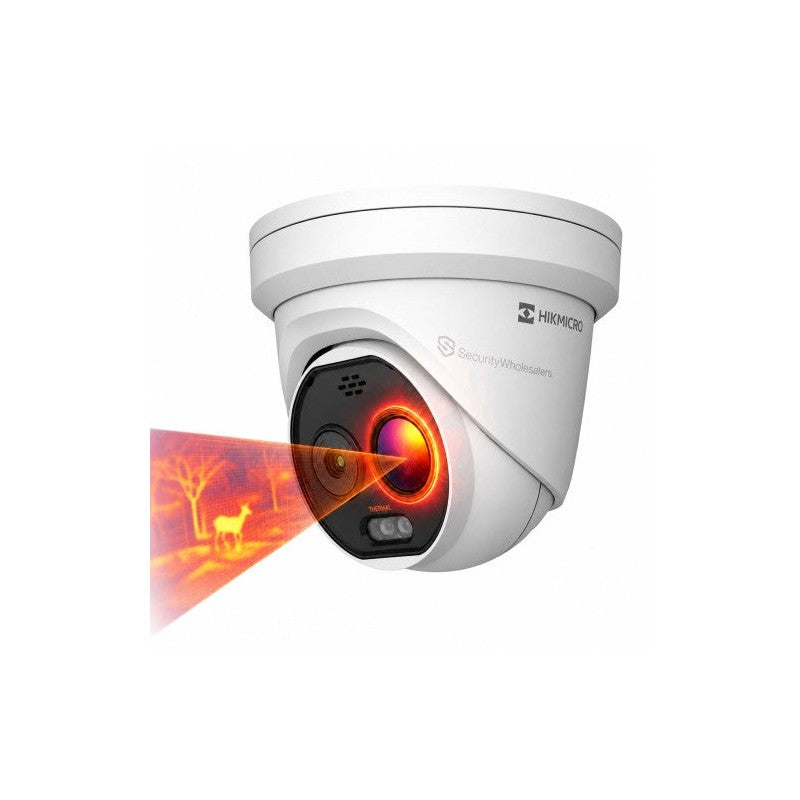

Hikvision Hm-td1218-2/g0/t1a Heatpro Thermal & Optical Bi-spectrum Turret Camera 2mm Focal
SKU: HMTD12182G0T1A
$712.32
The Hikvision HM-TD1218-2/G0/T1A HeatPro is a bi-spectrum turret camera that integrates a 160 x 120 thermal sensor with a 5MP optical module in a single IP67-rated housing. Designed for outdoor environments, it delivers simultaneous heat-based detection and full-colour visual verification, supporting early fire point and smoke detection for industrial and commercial security applications.
Key Features
- Bi-spectrum imaging with a 160 x 120 thermal sensor and 5MP optical camera operating simultaneously
- Bi-spectrum image fusion and picture-in-picture display for combined thermal and visual context
- Detects 0.5 x 0.5 m fire sources at distances up to 13.2 m for early ignition warning
- Optical smoke detection capability effective up to 3.15 m
- IP67-rated outdoor housing suitable for harsh environmental conditions
- Power over Ethernet (PoE) support for single-cable installation
- 2mm fixed focal length lens
Technical Specifications
| Model | HM-TD1218-2/G0/T1A |
| Camera Type | Bi-Spectrum Thermal and Optical Turret Camera |
| Thermal Sensor Resolution | 160 x 120 |
| Thermal Lens Focal Length | 1.8mm |
| Optical Camera Resolution | 5MP |
| Optical Lens Focal Length | 2mm |
| Image Fusion | Bi-spectrum image fusion with picture-in-picture display |
| Human VCA Detection Range (Thermal) | Up to 20 m (target: 1.8 x 0.5 m) |
| Vehicle VCA Detection Range (Thermal) | Up to 60 m (target: 1.4 x 4.0 m) |
| Fire Point Detection Range | Up to 13.2 m (object: 0.5 x 0.5 m) |
| Smoke Detection Range | Up to 3.15 m |
| Temperature Measurement Range (0.2 x 0.2 m object) | Up to 7 m |
| Temperature Measurement Range (0.5 x 0.5 m object) | Up to 17.5 m |
| DORI Detection Range – Human | 88 m |
| DORI Detection Range – Vehicle | 268 m |
| Smart Detection Functions | Human detection, vehicle detection, temperature exception alarm, fire point detection, smoke detection |
| Smart Hybrid Light | Yes |
| Audio / Alarm I/O | Yes |
| Power Supply | PoE (Power over Ethernet) |
| Weather Protection Rating | IP67 |
