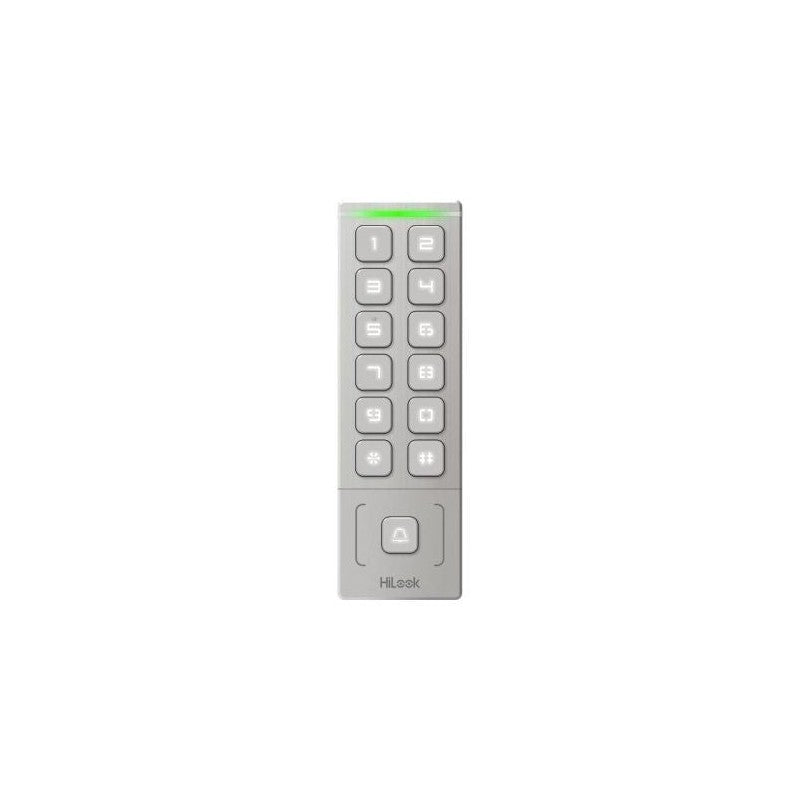

Hikvision Ha-ac-s1 Value Series Access Card Terminal – Ip65 Standalone Access Keypad
SKU: HAACS1
$202.20
The Hikvision HA-AC-S1 Value Series Access Card Terminal is a standalone access control device engineered for durability in outdoor environments. Featuring a slim metal body and an IP65 weatherproof rating, this unit is designed for installation at commercial gates, building facades, and exposed pedestals where environmental resistance is required.
Key Features
- IP65 weatherproof rating suitable for outdoor and exposed locations
- Standalone access control operation
- Constructed with a slim, metal body for enhanced durability
- Designed for installation at commercial gates and building facades
- Part of the Hikvision Value Series access control range
Technical Specifications
| Model | HA-AC-S1 |
| Authentication Methods | M1 card, PIN, or card + PIN |
| Card Type Supported | M1 card |
| Card Read Range | Approximately 3 cm |
| Card Read Time | Approximately 1 second |
| User Capacity | 1,000 users |
| Card Credential Storage | 1,000 cards |
| Output Interface | Wiegand 26 / Wiegand 34 |
| Supported Functions | Door lock control, exit button, door contact input, alarm output |
| Audio Output | 6 W |
| Power Supply | 12V DC, 1A |
| Weather Rating | IP65 |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 0% to 90% (non-condensing) |
| Dimensions | 151 x 48 x 21.5 mm |
| Weight | 220 g |
| Housing Material | Metal |
