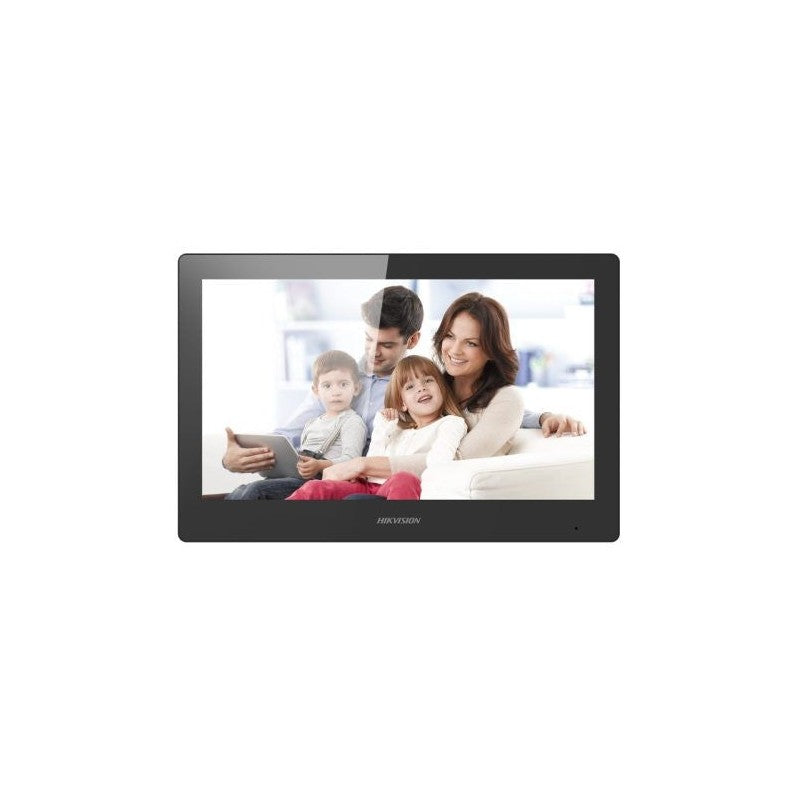

Hikvision Gen2 Ds-kh8520-wte1 Video Intercom 10-inch Touch Screen Indoor Room Station
SKU: DSKH8520WTE1
$552.90
The Hikvision DS-KH8520-WTE1 Gen2 Video Intercom Indoor Room Station is a 10-inch touch screen terminal designed for secure residential and commercial access control. This unit features a 1024 × 600 TFT LCD display and supports both wired Ethernet and Wi-Fi connectivity for flexible network integration.
Key Features
- 10.1-inch colorful TFT LCD display with 1024 × 600 resolution and capacitive touch operation
- Connectivity via 10/100 Mbps Ethernet and Wi-Fi 802.11b/g/n for wired or wireless network access
- Standard IEEE802.3af PoE power supply or 12 VDC/1A input with power consumption under 6W
- Remote unlocking capability through client software or mobile application
- Live video viewing of door stations and linked cameras with G.711 U audio compression
- Includes 2 relay outputs, 8-channel alarm inputs, and 1 RS-485 interface for system integration
- Supports micro SD card storage up to 32GB for message and picture capture
Technical Specifications
| Specification | Details |
|---|---|
| Resolution | 1024 x 600 |
| Lens | 254 |
| Ports | 4 |
| Speed | 100Mbps |
| Standard | 802.11b |
| Voltage | 12VDC |
| Warranty | 3 |
| Connection | WiFi |
| Compatibility | RTSP |
