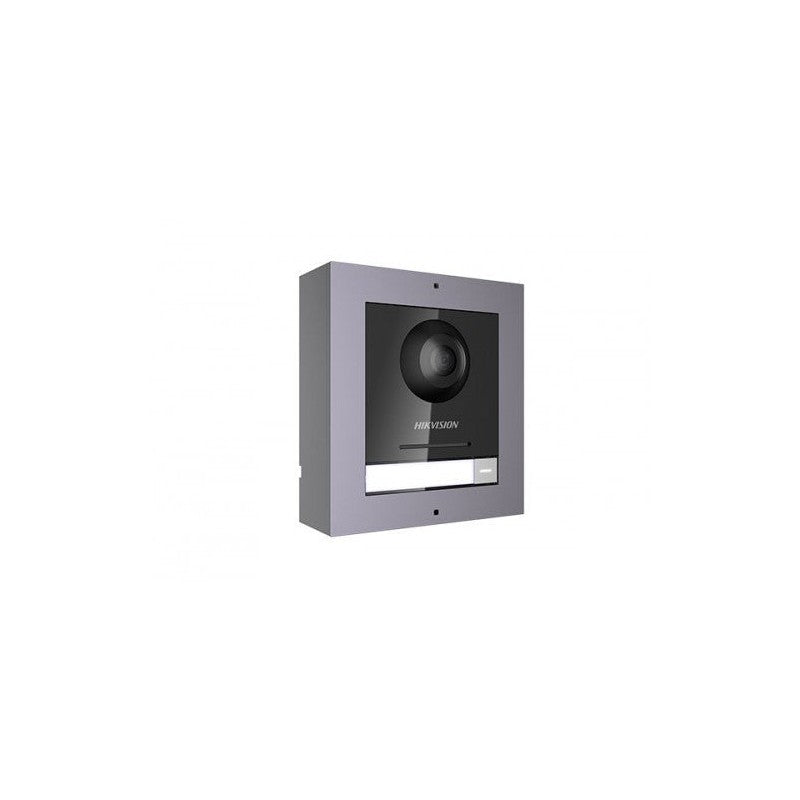

Hikvision Gen2 Ds-kd8003-ime1 Video Intercom Module Door Station (surface Mount)
SKU: DSKD8003IME1SURFACE
$272.40
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-3e0310hp-e 8 Port Fast Ethernet Unmanaged POE Switch
$202.20
Hikvision Ds-3e1528p-ei 24-port Gigabit Smart Managed POE Switch – 370w POE Budget
$787.20
Upgrades Subtotal:
$0.00
The Hikvision DS-KD8003-IME1 is a Gen2 surface mount video intercom module designed for villa systems, providing integrated access control and communication capabilities. This unit features a 2MP HD fisheye camera with IR supplement light, enabling wide-angle monitoring and clear video transmission over a standard PoE network.
Key Features
- 2MP HD video intercom with 180° horizontal and 96° vertical field of view
- Integrated access control with support for up to 8 sub-modules
- IP65 protection rating with operating temperature range of -40°C to +60°C
- Audio system includes built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation
- Network connectivity via 10/100 Mbps Ethernet using IEEE802.3af standard PoE
- Video compression in H.264 format with main stream resolution of 1920 × 1080
- Supports tampering alarm and door magnetic alarm inputs
- Surface mount housing with dimensions of 98mm × 99.8mm × 43.9mm
Technical Specifications
| System Parameters | ||
|---|---|---|
| Operation System: | Embedded Linux Operation System | |
| Operation method: | Physical Button | |
| Processor: | Embedded MCU Processor | |
