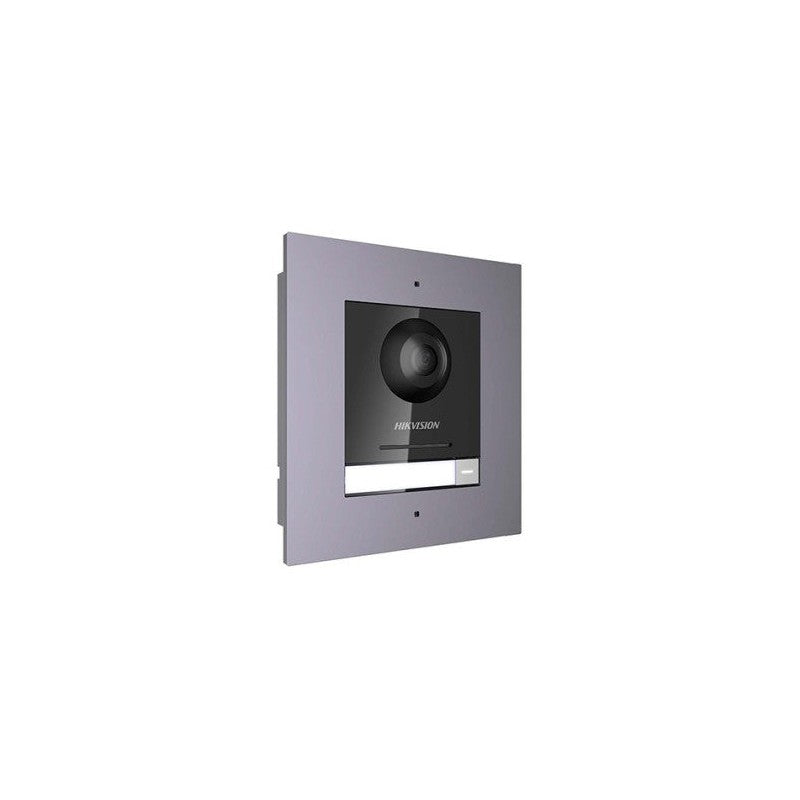

Hikvision Gen2 Ds-kd8003-ime1/flush Video Intercom Module Door Station (flush Mount)

The Hikvision DS-KD8003-IME1/Flush Video Intercom Module Door Station is a flush-mounted entry unit designed for villa and residential security systems. It integrates a 2MP HD fisheye camera with IR illumination and supports up to eight sub-modules for expanded access control capabilities.

Key Features

• 2MP HD fisheye camera with 180° horizontal and 96° vertical field of view
• Supports up to 8 sub-modules for extended access control
• IP65 protection rating with operating temperature range of -40°C to +60°C
• Audio features include built-in omnidirectional microphone, loudspeaker, and G.711 U compression
• Video capabilities include WDR, DNR, BLC, and H.264 compression at 1920 × 1080 resolution
• Connects via standard PoE switch (48V) with IEEE802.3af PoE or 12VDC power supply
• Includes tampering alarm, door magnetic alarm, and 4 I/O inputs
• Flush mounting design with dimensions of 98mm × 99.8mm × 43.9mm
