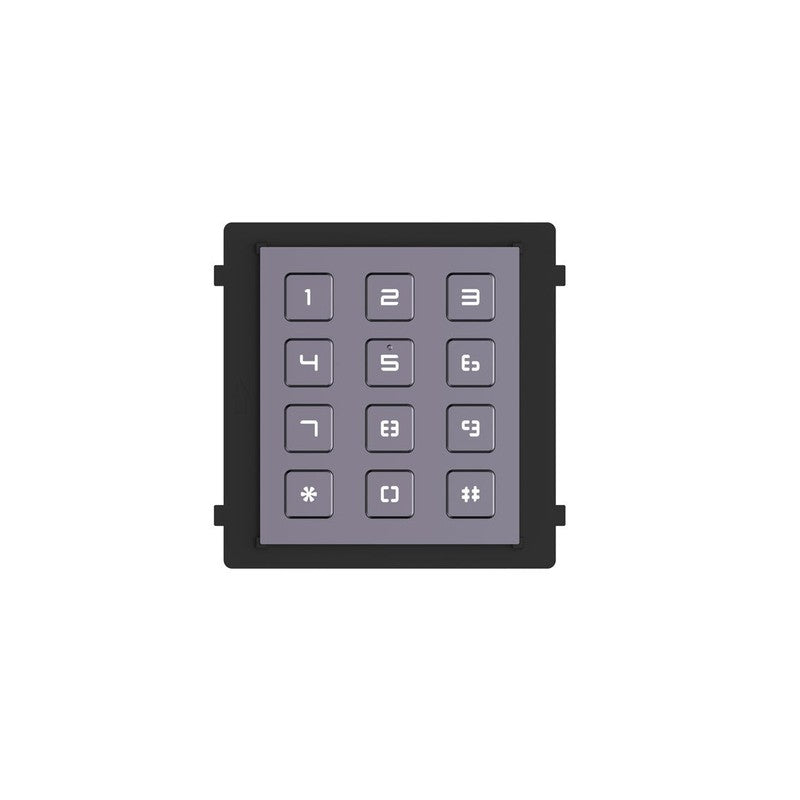

Hikvision Gen2 Ds-kd-kp Video Intercom Keypad Module

The Hikvision DS-KD-KP Video Intercom Keypad Module is a Gen2 accessory that connects to DS-KD8003-IME1 door stations via RS485 leads to provide secure code and PIN entry. This module enables individual apartment calling and door unlocking through physical button input, supporting both flush and surface mounting configurations.

Key Features

• Connects to DS-KD8003-IME1 door stations using supplied RS485 leads for code and PIN entry
• Features 12 physical buttons for system operation and individual apartment calling
• Utilizes an embedded MCU processor with 8-position DIP switch for configuration
• Rated IP65 and IK7 for dust, water, and impact protection
• Supports flush or surface mounting with dimensions of 98.5mm × 100mm × 33.7mm
• Operates within a temperature range of -40°C to +60°C and humidity of 10% to 95%
• Power consumption is ≤2W with 12VDC input and output for module connectivity
