Hikvision Gen2 Ds-kd-kk Video Intercom Nametag Module
SKU: DSKDKK
$85.20

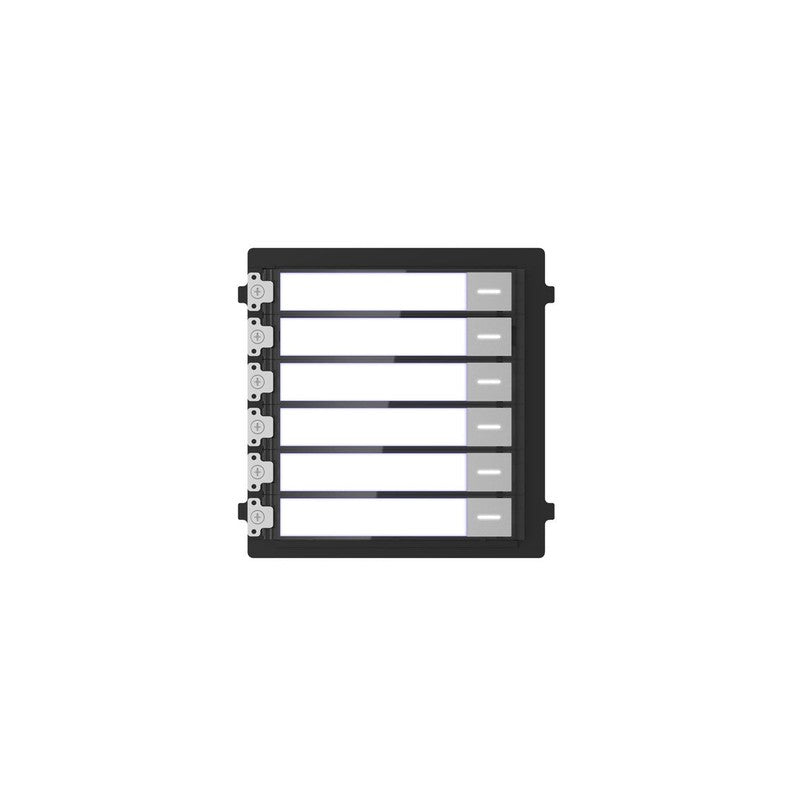

The Hikvision DS-KD-KK Video Intercom Nametag Module is a physical button interface designed for the Hikvision DS-KD8003-IME1 Door Station. It enables direct dial-up of apartments via dedicated nametag buttons and supports a daisy-chain configuration of up to eight modules per door station unit.
Key Features
- Connects to DS-KD8003-IME1 Door Station via supplied RS485 leads
- Features six physical buttons for apartment dial-up
- Supports up to 8 modules connected to a single door station
- Powered directly by the DS-KD8003-IME1 with power consumption under 2W
- IP65 protection rating suitable for harsh environmental conditions
- Operating temperature range of -40°C to +60°C
- Dimensions of 98.21mm × 100.21mm × 33.7mm
Technical Specifications
| System Parameters | ||
|---|---|---|
| Operation method: | Physical Button | |
| Processor: | Embedded MCU Processor | |
