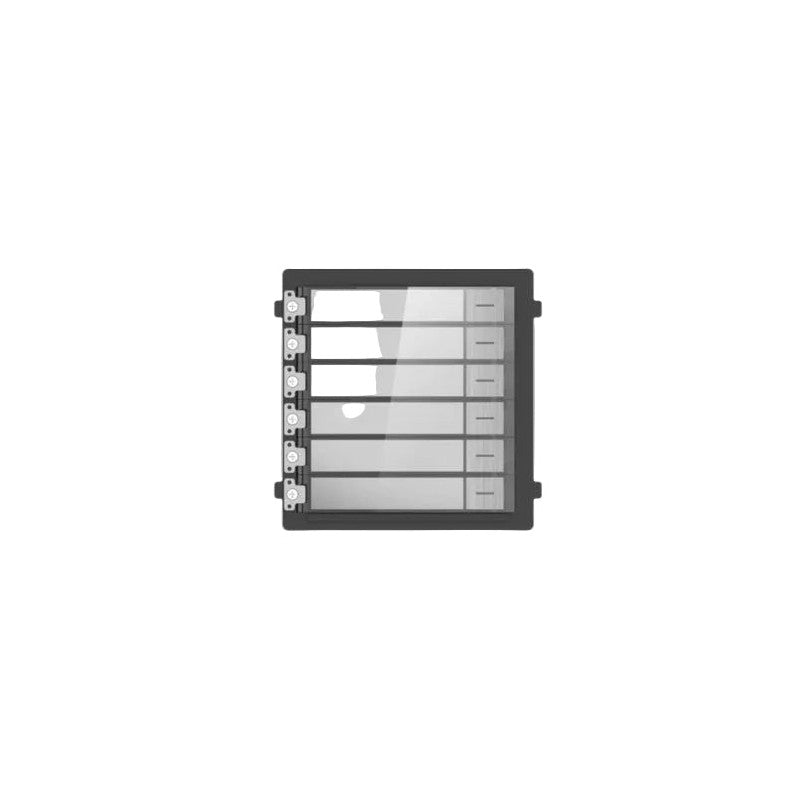

Hikvision Gen2 Ds-kd-kk/s Video Intercom Nametag Module (stainless Steel)
SKU: DSKDKKS
$103.92
The Hikvision DS-KD-KK/S Video Intercom Nametag Module is a stainless steel accessory designed for the Hikvision Gen2 video intercom ecosystem. It connects to DS-KD8003-IME1 door stations via RS485 leads to facilitate direct apartment dialing through physical button inputs.
Key Features
- Constructed from stainless steel with an IP65 protection rating for outdoor durability
- Features six physical buttons for direct unit dialing
- Connects to DS-KD8003-IME1 door stations using supplied RS485 leads
- Supports up to eight modules connected to a single door station unit
- Compatible with both flush and surface mounting installations
- Operates within a temperature range of -40°C to +60°C and humidity of 10% to 95%
- Measures 98.21mm × 100.21mm × 33.7mm with a power consumption of ≤2W
Technical Specifications
| System Parameters | ||
|---|---|---|
| Operation method: | Physical Button | |
| Processor: | Embedded MCU Processor | |
