Hikvision Gen2 Ds-kd-acw3 Video Intercom Surface Mount Housing – 3 Module
SKU: DSKDACW3
$215.07

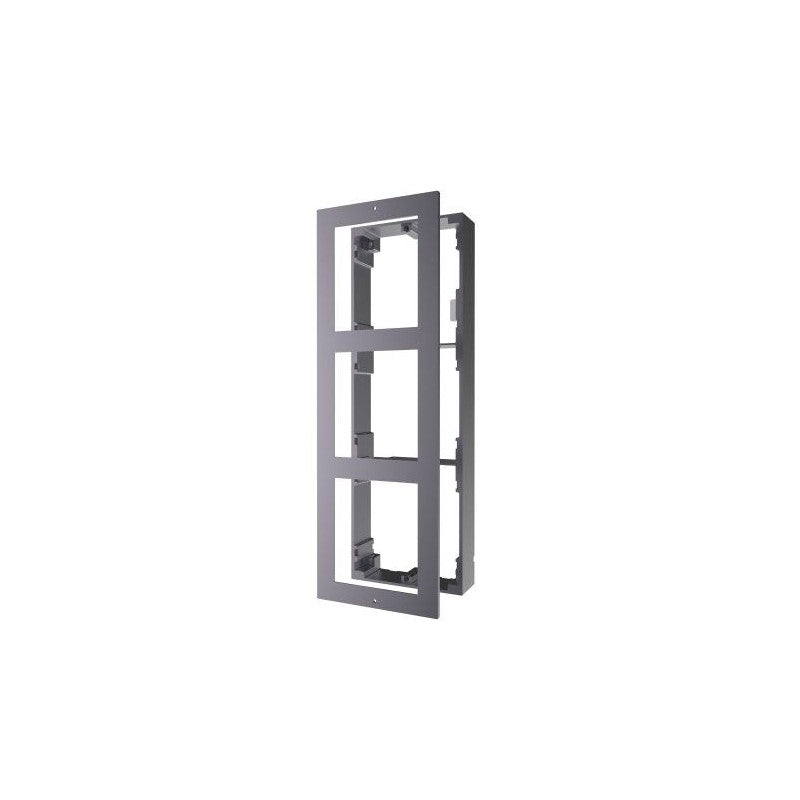

The Hikvision DS-KD-ACW3 is a Gen2 Video Intercom Surface Mount Housing designed to accommodate three modules for the DS-KD8003-IME1 door station. Constructed from aviation aluminum, this unit provides a robust and weather-resistant enclosure for surface-mounted installations.
Key Features
- Supports the surface mounting of up to three intercom modules
- Constructed with aviation aluminum for both the cover and gang box
- Operates within a temperature range of -40°C to +60°C (-40°F to 140°F)
- Functions in humidity levels ranging from 10% to 95%
- Cover dimensions measure 320.8 x 107 x 4 mm (12.6″ x 4.21″ x 0.16″)
- Installation frame dimensions measure 320.8 x 107 x 32.7 mm (12.6″ x 4.21″ x 1.29″)
- Compatible with Hikvision Gen2 Video Intercom systems
Technical Specifications
| General | ||
|---|---|---|
| Material: | Cover: Aviation Aluminum, Gang box: Aviation Aluminum | |
| Working Humidity: | 10% to 95% | |
| Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
| Dimensions(L × W × H): | Cover: 320.8 x 107 × 4 mm(12.6″ x 4.21″ x 0.16″) Installation Frame: 320.8 x 107 × 32.7 mm(12.6″ x 4.21″ x 1.29″) |
|
