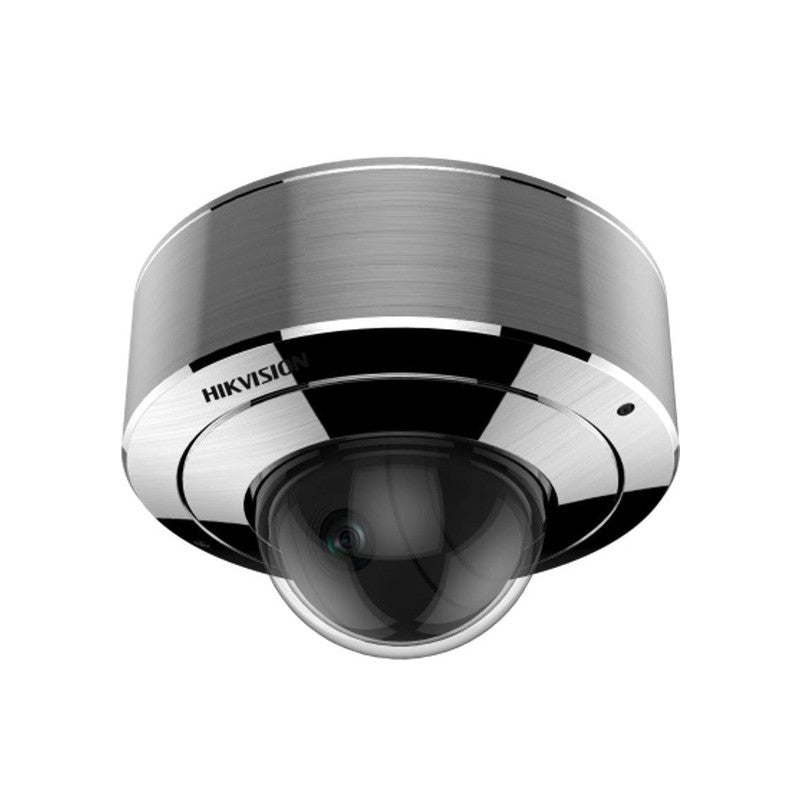

Hikvision Explosion-proof Ds-2xe6146f-hs Dome Camera Fixed 4mm
SKU: DS2XE6146FHS
$4,759.35
The Hikvision DS-2XE6146F-HS is a fixed dome explosion-proof network camera engineered for hazardous industrial environments, including oil and gas facilities, chemical plants, and mining sites. Certified to ATEX and IECEx standards, this unit is approved for use in Zone 2 explosive gas atmospheres and Zone 21 combustible dust atmospheres.
Key Features
- 4 MP imaging sensor with a 4 mm fixed lens providing a 77-degree horizontal field of view
- ATEX II 2G Ex db IIC T6 Gb and IECEx Ex db IIC T6 Gb certification for explosive gas zones
- II 2D Ex tb IIIC T80°C Db IP68 certification for combustible dust zones
- 316L stainless steel enclosure with anti-corrosion spray treatment for resistance to chemicals and salt spray
- Built-in heater supporting cold-start operation down to -40 degrees Celsius
- IP68 water resistance rating for exposed outdoor mounting positions
- Power over Ethernet (PoE) connectivity for simplified installation
Technical Specifications
| Image Sensor | 1/2.7-inch Progressive Scan CMOS |
| Maximum Resolution | 2560 x 1440 (4 MP) |
| Lens (This Variant) | 4 mm fixed, F2.0, M12 mount |
| Field of View (4 mm) | Horizontal 77°, Vertical 42.5°, Diagonal 89.3° |
| Min. Illumination | Colour: 0.028 lux @ F2.0 (AGC ON); B/W: 0.01 lux @ F2.0 (AGC ON) |
| Day/Night | Electronic (Day / Night / Auto / Schedule / Alarm-triggered) |
| WDR | Digital WDR |
| Image Enhancement | BLC, 3D DNR, HLC, Defog, EIS |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Main Stream Frame Rate | 50 Hz: 25 fps at 2560 x 1440; 60 Hz: 24 fps at 2560 x 1440 |
| Explosion-Proof Certification | ATEX: II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db IP68; IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db IP68 |
| Enclosure Material | 316L stainless steel with anti-corrosion spray |
| Ingress Protection | IP68 |
| Built-In Heater | Yes – cold-start operation from -40°C |
| Power Supply | 12 VDC ±20% (terminal block) or PoE 802.3af Class 3 |
| Power Consumption | Max 10 W (12 VDC); Max 12.5 W (PoE) |
| Network Interface | 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet; 1 x RS-485 |
| Alarm I/O | 1 alarm input, 1 alarm output (max 24 VDC 1 A or 110 VAC 500 mA) |
| Onboard Storage | microSD/SDHC/SDXC slot, up to 128 GB |
| Camera Weight | Approx. 2.5 kg |
