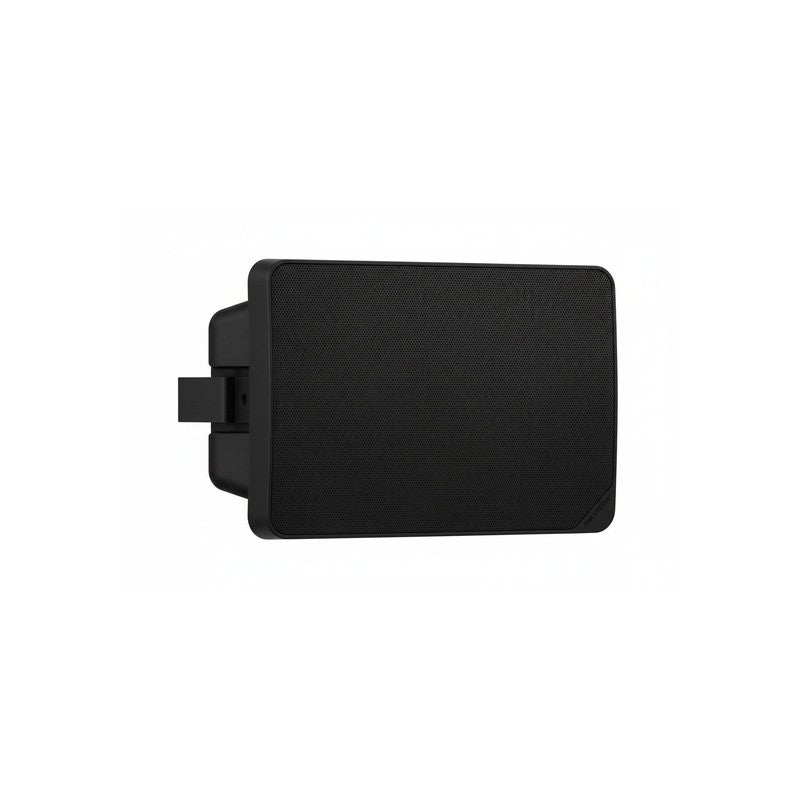

Hikvision Ds-qaz1120g1r-b Network Cabinet Speaker With POE Audio, 20w Rated Power, 5.25″ Driver, 103db Max Spl
SKU: DSQAZ1120G1RB
$629.25
The Hikvision DS-QAZ1120G1R-B is a network cabinet speaker designed for IP-based public address and paging systems. It features a 5.25-inch driver and 20W rated power, providing clear voice output for indoor commercial and institutional environments.
Key Features
- 20W rated power output for voice paging and scheduled announcements
- 5.25-inch driver for clear voice reproduction and general audio playback
- Maximum SPL of 103dB for effective projection in spaces with moderate ambient noise
- Power over Ethernet (PoE) support for single-cable power and data transmission
- Cabinet-style format suitable for wall-mounted installation
- Designed for integration with IP network audio platforms
Technical Specifications
| Model | DS-QAZ1120G1R-B |
| Product Type | Network cabinet speaker with PoE audio |
| Audio Category | Public address network speaker |
| Rated Power | 20W |
| Speaker Driver | 5.25-inch driver |
| Maximum SPL | 103dB |
| Connection Type | IP network audio |
| Power Method | PoE, subject to compatible PoE switch or injector |
| Speaker Format | Cabinet speaker, wall-mounted installation |
| Primary Use | Network public address, paging, voice broadcast, scheduled audio playback |
| Typical Locations | Offices, retail stores, reception areas, classrooms, corridors, showrooms, warehouses, halls, public facilities |
| System Compatibility | Compatible IP-based public address and network audio platforms |
| Lead Time | 70 days |
| Installation Consideration | Confirm PoE switch budget, network compatibility, audio platform support, mounting surface, speaker spacing, cable route and sound coverage requirements before installation |
