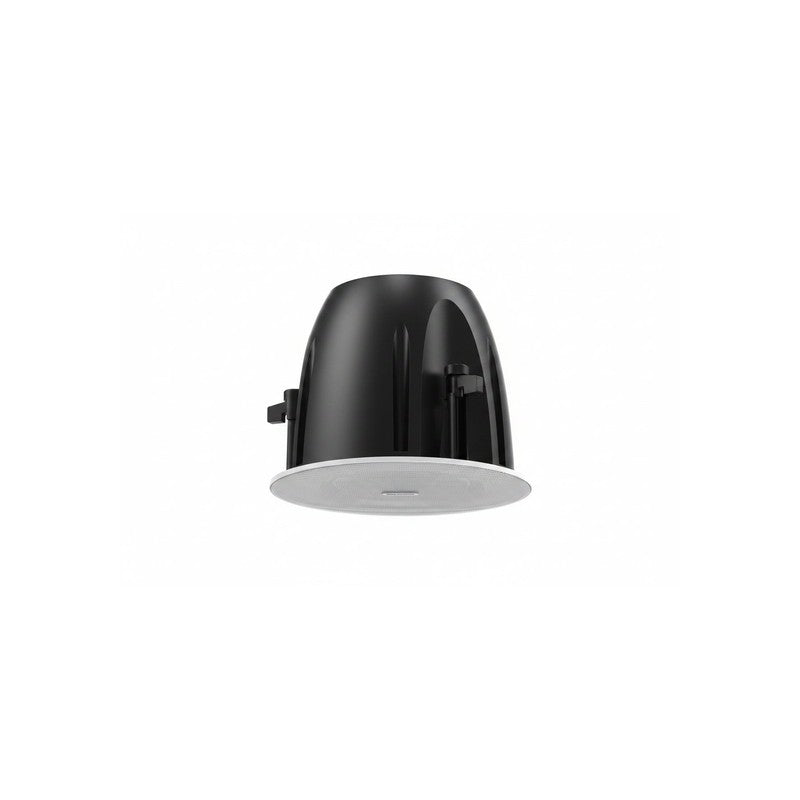

Hikvision Ds-qaz0610g1 Analog Frameless Ceiling Speaker With 10w Rated Power, 6.5″ Woofer & 1″ Tweeter, 98db Max Spl
SKU: DSQAZ0610G1
$155.40
The Hikvision DS-QAZ0610G1 is an analog frameless ceiling speaker engineered for public address, paging, and background audio in commercial environments. It integrates a 6.5-inch woofer and a 1-inch tweeter to deliver clear voice announcements with a maximum SPL of 98dB, while the frameless design ensures a flush, unobtrusive installation for offices, retail spaces, and public facilities.
Key Features
- 10W rated power output suitable for distributed PA loops and background audio zones
- 6.5-inch woofer for full-range audio reproduction across lower and mid frequencies
- 1-inch tweeter optimized for high-frequency clarity and speech intelligibility
- 98dB maximum SPL provides sufficient headroom to overcome typical ambient noise levels
- Frameless ceiling format eliminates visible mounting rings for a clean, low-profile finish
- Analog connectivity designed for integration with compatible analog amplifier systems
- 70-day lead time applies; verify stock availability prior to finalizing project schedules
Technical Specifications
| Model | DS-QAZ0610G1 |
| Product Type | Analog frameless ceiling speaker |
| Audio Category | Public address analog speaker |
| Rated Power | 10W |
| Woofer Size | 6.5 inches |
| Tweeter Size | 1 inch |
| Maximum SPL | 98dB |
| Speaker Configuration | Two-way (woofer and tweeter) |
| Installation Type | Frameless ceiling mount |
| System Compatibility | Compatible analog public address and audio systems |
| Primary Application | Public address announcements, paging, voice broadcast, and background audio |
| Typical Locations | Offices, retail stores, reception areas, classrooms, corridors, showrooms, halls, and public facilities |
| Outdoor Rated | Indoor use only |
| Lead Time | 70 days – confirm availability before ordering |
| Installation Consideration | Confirm amplifier compatibility, speaker line type, ceiling structure, cut-out requirements, speaker spacing, and required sound coverage before installation |
