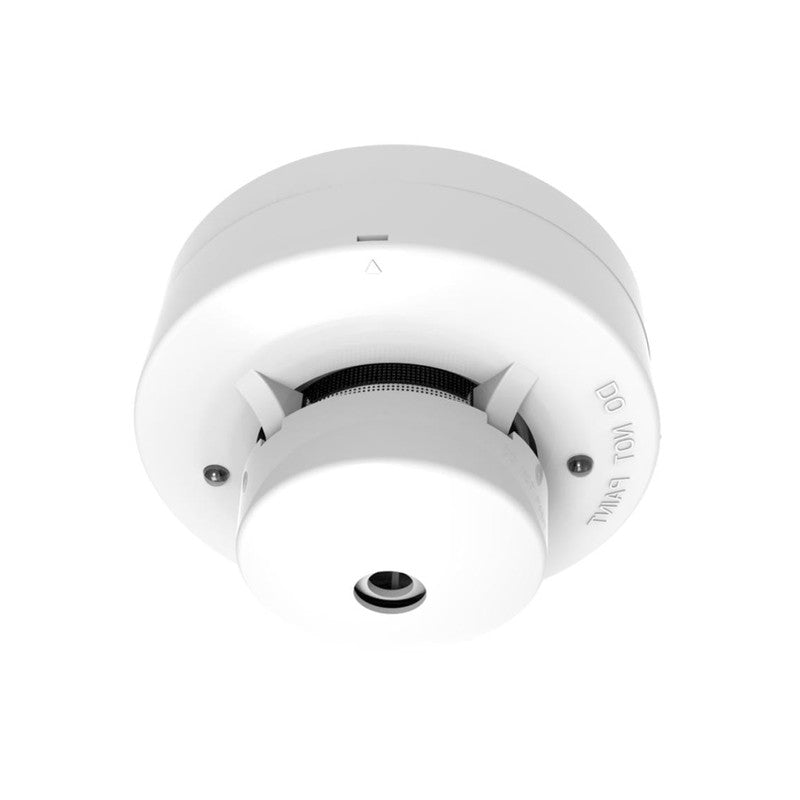

Hikvision Ds-pdsmk-4bar Ax Pro Wired Smoke Detector
SKU:
$101.08
The Hikvision DS-PDSMK-4BAR AX Pro Wired Smoke Detector is a 4-wire conventional photoelectric device designed for integration into wired intrusion and fire alarm systems. It features a built-in high-output sounder and dual red LED indicators to provide immediate local audible and visual alerts upon smoke detection.
Key Features
- Photoelectric smoke detection technology for early fire warning
- 4-wire conventional connection compatible with 12 V DC alarm panels
- Built-in high-output sounder producing approximately 85 dB for local audible alerts
- Dual red LED indicators providing 360° visibility for status monitoring
- Normally Open (NO) or Normally Closed (NC) relay output for panel signalling
- Low-profile housing designed for ceiling or surface mounting
- Stable sensing chamber engineered for minimal maintenance requirements
Technical Specifications
| Specification | Details |
|---|---|
| Detector Type | Photoelectric smoke detector |
| Wiring | 4-wire |
| Power Supply | 12 V DC |
| Alarm Output | NO / NC relay contacts |
| Built-in Sounder | Approx. 85 dB |
| Visual Indicators | Dual red LEDs |
| Mounting | Ceiling / surface mount |
| Application | Wired intrusion & fire alarm systems |
