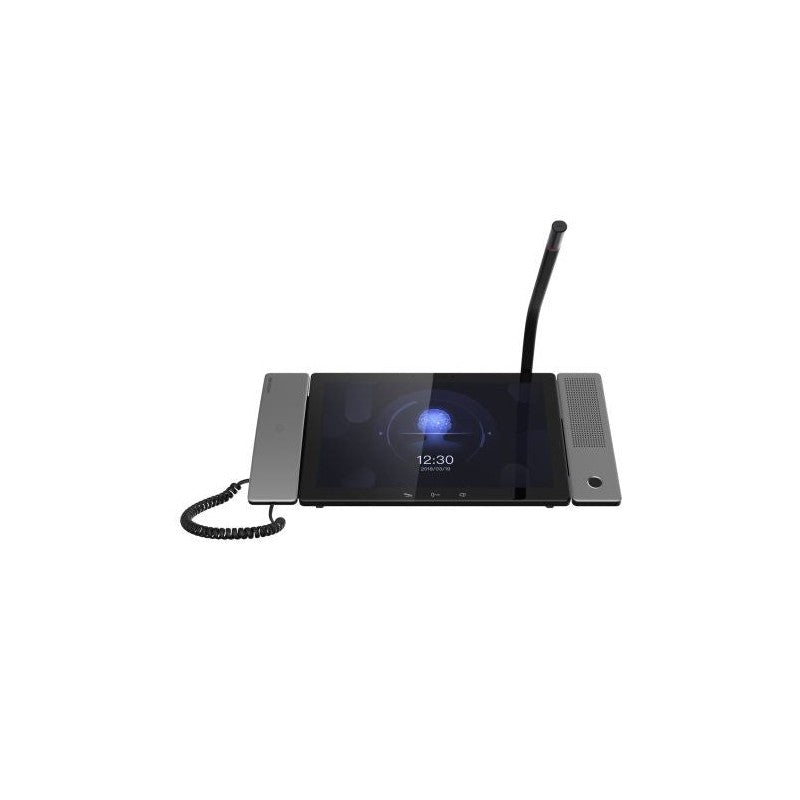

Hikvision Ds-km9503 2nd Gen Concierge Master Intercom Station, 10″ Screen, Camera, Poe/12vdc

The Hikvision DS-KM9503 2nd Gen Concierge Master Intercom Station is a 10.1-inch Android-based video intercom terminal designed for high-capacity residential and commercial access control. It features a 2 MP camera with H.264 compression and supports both standard PoE and 12 VDC power supplies for flexible installation.

Key Features

• 10.1-inch colorful IPS display with 1280 × 800 resolution and capacitive touch operation
• 2 MP camera with 64.1° horizontal field of view and H.264 video compression
• Android 7.1 operating system with 8 GB ROM and 2 GB RAM
• Supports up to 128 linked network cameras and 10,000 linked intercom devices
• Audio features include built-in omnidirectional microphone, loudspeaker, and G.711U/A compression with noise suppression
• Network protocols include TCP/IP, SIP, and RTSP with two network interfaces
• Power supply via 12 VDC or standard PoE (LAN1) with power consumption ≤ 12 W
• Indoor application with table or wall mounting options and 292 mm × 166 mm × 31 mm dimensions
