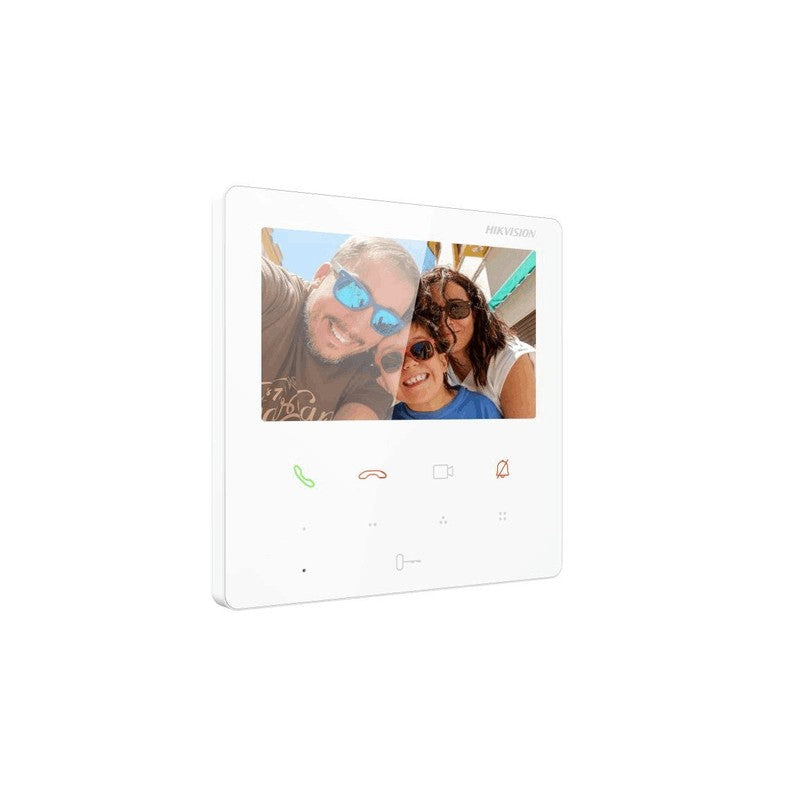

Hikvision Ds-kh6110-we1 (white) 4.3″ IP Indoor Station With Wi-fi & POE
SKU: DSKH6110WE1
$184.65
The Hikvision DS-KH6110-WE1 (White) 4.3″ IP Indoor Station With Wi-fi & POE is a compact IP indoor monitor designed for integration with Hikvision door stations and cameras. It features a 4.3″ colour touch screen and supports both PoE and Wi-Fi connectivity for flexible installation in new or retrofit environments.
Key Features
- 4.3″ colour capacitive touch screen with a resolution of 480 × 272
- Supports PoE power (IEEE 802.3af) or 12 V DC input
- Wi-Fi (2.4 GHz) support alongside wired Ethernet connectivity
- Four user-customisable hot-touch buttons for quick access to functions
- Supports up to 16 indoor extensions for multi-room setups
- Remote management and live view via the Hik-Connect app
- Compact dimensions of 120 × 120 × 21 mm with power consumption ≤ 4 W
Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | DS-KH6110-WE1 |
| Display | 4.3″ capacitive touch screen |
| Screen Resolution | 480 × 272 |
| Power Supply | PoE (IEEE 802.3af) or 12 V DC |
| Power Consumption | ≤ 4 W |
| Network Interface | 1 × RJ-45 100 Mbps |
| Wi-Fi Support | 802.11 b/g/n (2.4 GHz) |
| Protocols Supported | TCP/IP, SIP, RTSP |
| Linked Indoor Station Cap. | Up to 16 indoor extensions |
| Event/Notice Capacity | 200 / 200 |
| Mounting | Wall mount or table mount |
| Operating Temperature | –10 °C to +50 °C |
| Dimensions (W×H×D) | 120 × 120 × 21 mm |
| Application Environment | Indoor |
