Hikvision Ds-kd8003-ime1/s 2nd Gen IP Intercom Door Station 12vdc, Poe, Stainless Steel
SKU: DSKD8003IME1NS
$295.80

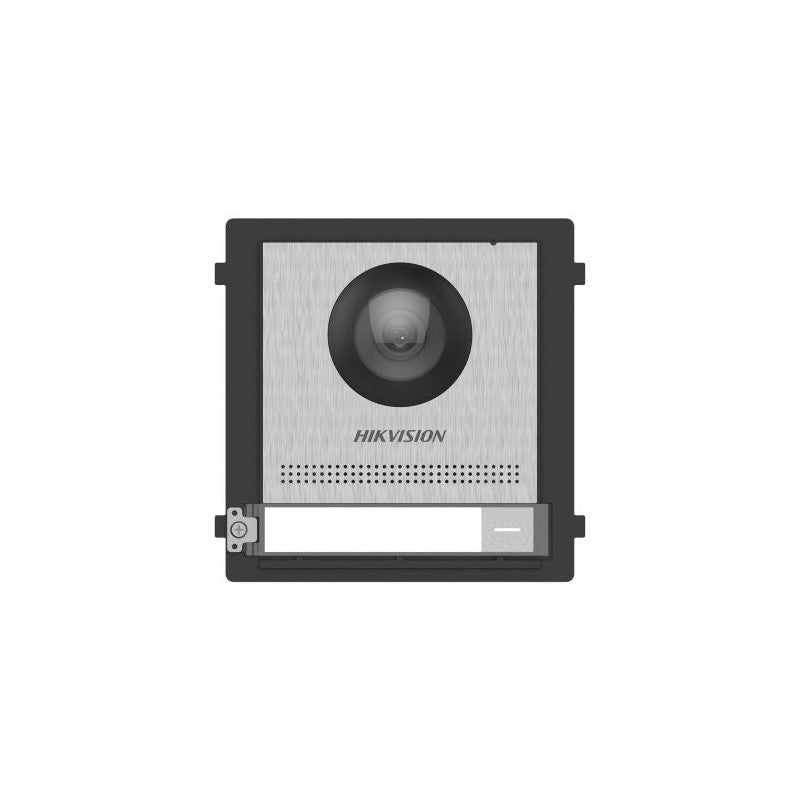

The Hikvision DS-KD8003-IME1/S 2nd Gen IP Intercom Door Station is a 12VDC and PoE-powered access control unit designed for high-definition video communication. Constructed from stainless steel, this device integrates a 2MP camera with advanced audio processing to provide reliable entry management for residential and commercial facilities.
Key Features
- 2MP HD camera with H.264 video codec supporting 1920 x 1080 main and 720 x 580 sub-streams
- Wide angle lens providing a 180-degree horizontal and 96-degree vertical field of view
- Wide Dynamic Range (WDR) technology and Infrared LED illumination for clear visibility in varying light conditions
- Integrated noise suppression and echo cancellation for clear two-way audio communication
- Supports display, indicator, keypad, card reader, and 6-button modules for flexible configuration
- Power options include 48V PoE or 12V DC with a maximum power consumption of 10W
- Equipped with 2x 2A relays and 12V DC @ 3A output for external device control
- Compatible with Hikvision protocol, RTSP, and ONVIF for seamless system integration
Technical Specifications
| Model | DS-KD8003-IME1/NS |
| Product Type | KD8 Pro modular IP video intercom door station main unit |
| System Architecture | Hikvision IP Series / Pro Series modular door station system |
| Camera | 2MP fisheye camera |
| Field of View | Horizontal 180°, vertical 96° |
| Video Compression | H.264 |
| Audio Input | Built-in microphone |
| Audio Output | Built-in loudspeaker |
| Audio Processing | Noise suppression and echo cancellation |
| Power Supply | PoE or 12VDC depending on system design |
| Network | IP network connection for compatible Hikvision video intercom systems |
| Tamper Alarm | Supported |
| Protection Level | IP65 |
| Installation | Surface-mounted or flush-mounted with compatible Hikvision modular mounting accessories |
| Module Support | Supports compatible KD8 Pro modular door station sub-modules and accessories |
| Best Use | Apartment entries, office doors, commercial lobbies, gated access points and custom modular IP intercom panels |
| Installation Consideration | Confirm PoE supply, indoor station compatibility, lock wiring, mounting accessories, module layout and network configuration before installation |
