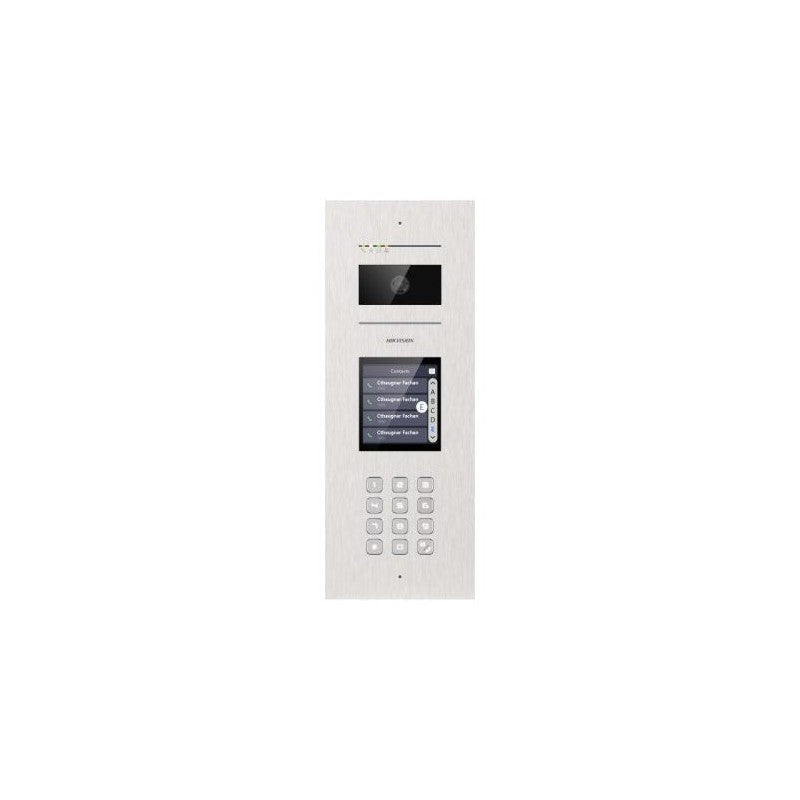

Hikvision Ds-kd7003ey-s2 2-wire Hd Door Station With Stainless Steel 316l Panel, Touch Display, Wide Angle Wdr & Ik08 Protection
SKU: DSKD7003EYS2
$1,177.98
The Hikvision DS-KD7003EY-S2 2-Wire HD Door Station is an all-in-one video intercom entry panel engineered for compatible Hikvision 2-wire HD systems. It integrates a 2MP wide-angle camera, a 4-inch IPS capacitive touch display, and a mechanical keypad within a durable stainless steel 316L housing designed for outdoor installation.
Key Features
- Constructed with an all-in-one stainless steel 316L panel and IK08 protection rating for enhanced outdoor durability.
- Features a 2MP camera with a 133° horizontal and 82° vertical field of view, supported by WDR and IR supplement lights.
- Equipped with a 4-inch IPS capacitive touch display with 480 × 480 resolution for clear visitor interaction.
- Includes a 12-button mechanical keypad to support calling functions and PIN code workflows.
- Supports up to 2,000 users, 400 linked indoor stations, and 16 sub door stations.
- Provides two-lock control options, including relay and DC pulse lock control, for flexible door and gate release designs.
- Integrates a built-in microphone and loudspeaker for two-way audio communication.
Technical Specifications
| Model | DS-KD7003EY-S2 |
| Product Type | 2-Wire HD all-in-one video intercom door station |
| Panel Material | Stainless steel 316L |
| System Architecture | Hikvision 2-wire HD video intercom system |
| Display | 4-inch IPS capacitive touch screen |
| Display Resolution | 480 × 480 |
| Camera Resolution | 2MP |
| Maximum Stream Resolution | 1920 × 1080 |
| Field of View | Horizontal 133°, vertical 82° |
| WDR | Supported |
| Supplement Light | Low illumination support with IR supplement lights |
| Video Compression | H.264 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression | G.711 U and G.711 A |
| Audio Quality | Noise suppression and echo cancellation, adjustable volume |
| User Capacity | Up to 2,000 users |
| Linked Indoor Station Capacity | Up to 400 linked indoor stations |
| Sub Door Station Capacity | Up to 16 sub door stations |
| Buttons | 12 physical buttons for calling and PIN code workflows |
| Indicators | Opening door, calling, intercom and in-use indicators |
| Interfaces | 2 alarm inputs, 1 exit button, 2 RS-485 module interfaces, 1 door contact input and 1 two-wire interface |
| Lock Control | 2 lock controls: 1 relay up to 30VDC, 2A and 1 DC pulse output |
| Configuration | AP mode configuration supported |
| Power Supply | 48V powered by DS-KAD7060EY distributor or 12VDC |
| Power Consumption | ≤6W |
| Protection Level | IP65, IK08 |
| Installation | Flush mounting |
| Working Temperature | -20°C to 55°C |
| Working Humidity | 10% to 90%, non-condensing |
| Dimensions | Approx. 359 × 134 × 34mm |
| Net Weight | Approx. 2.58kg |
| Best Use | Apartment entries, villas, gated entrances, commercial door stations, outdoor video intercom systems and 2-wire HD retrofit projects |
