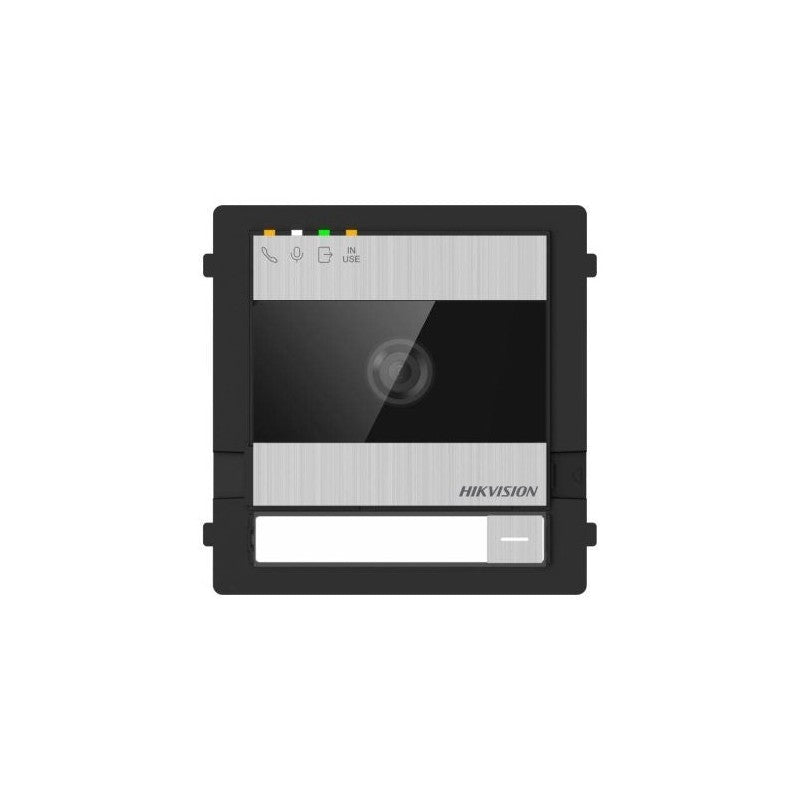

Hikvision Ds-kd7003ey-ime2 2-wire Hd Door Station With 2MP Camera, 133° Wide View, Wdr & IR Supplement Light
SKU: DSKD7003EYIME2
$340.26
The Hikvision DS-KD7003EY-IME2 is a 2-wire HD door station designed for modular video intercom systems, featuring a 2MP camera with a 133° horizontal field of view to capture clear visitor details. This unit supports H.264 video compression, Wide Dynamic Range, and IR supplement lighting to ensure reliable performance in varied lighting conditions. It is suitable for retrofit projects and new installations in apartments, villas, and commercial sites where 2-wire cabling is preferred.
Key Features
- 2MP camera with 133° horizontal and 82° vertical field of view
- Wide Dynamic Range (WDR) and IR supplement light for low-light visibility
- 2-wire HD intercom architecture compatible with Hikvision systems
- Supports two-lock control for flexible door release configurations
- Modular design compatible with sub-modules for buttons, keypads, and card readers
- Built-in microphone and loudspeaker for clear two-way audio communication
- Plug-and-play setup with rotary switch and mobile web configuration options
- H.264 video compression for efficient data transmission
Technical Specifications
| Model | DS-KD7003EY-IME2 |
| Product Type | 2-Wire HD modular video intercom door station main unit |
| System Architecture | Hikvision 2-wire HD video intercom system |
| Camera Resolution | 2MP |
| Maximum Stream Resolution | 1920 × 1080 |
| Field of View | Horizontal 133°, vertical 82° |
| WDR | Supported |
| Supplement Light | Low illumination support with IR supplement light |
| Video Compression | H.264 |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression | G.711 U and G.711 A |
| Configuration | Mobile web configuration in AP mode, rotary switch configuration and plug-and-play setup |
| Status Indicators | Opening door, calling, on call and in-use indicators |
| Button Layout | Single and double buttons can be freely adjusted |
| Lock Control | Two-lock control supported |
| Sub-Module Support | Compatible with released Hikvision sub-modules where supported |
| Operating System | Embedded Linux operation system |
| ROM | 4GB |
| RAM | 256MB |
| Installation | Surface-mounted or flush-mounted with compatible Hikvision mounting accessories |
| Best Use | Apartment entries, villas, small commercial doors, gated access points, retrofit intercoms and 2-wire HD video intercom systems |
| Installation Consideration | Requires compatible 2-wire HD distributor, indoor station, cabling, addressing, lock wiring and mounting accessories |
