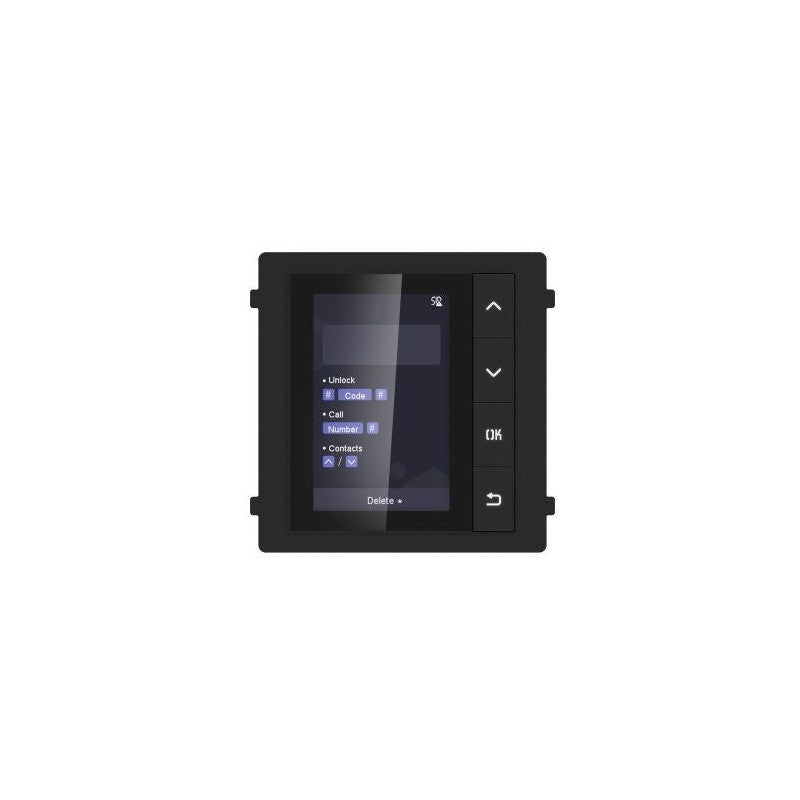

Hikvision Ds-kd-dis Gen2 Intercom, Door Station Name Scroll Module
SKU: DSKDDIS
$149.55
The Hikvision DS-KD-DIS Gen2 Intercom Door Station Name Scroll Module is a KD8 Series Pro display unit designed for modular door station systems. It provides a 3.5-inch TFT LCD interface for contact management and navigation within Hikvision Gen2 installations.
Key Features
- 3.5-inch TFT LCD screen with 320 × 480 resolution for clear display of contact lists and prompts
- Supports storage and search of up to 2,000 contacts for multi-tenant environments
- Four physical backlit buttons for navigation, selection confirmation, and return functions
- IP65 ingress protection rating suitable for outdoor application with compatible housings
- 12VDC module-to-module power connection for integration into modular systems
- Compatible with Hikvision Gen2 modular door stations, keypads, and card readers
- Displays dial numbers, contact directories, and PIN code unlock prompts
Technical Specifications
| Model | DS-KD-DIS |
| Product Type | Gen2 / KD8 Series Pro modular door station display and name scroll module |
| Primary Use | Displays contact list, dial number, PIN code unlock prompts and door station information in compatible modular intercom systems |
| Screen | 3.5-inch TFT LCD screen |
| Resolution | 320 × 480 |
| Brightness | Adjustable, max. 250 cd/m² |
| Contact Capacity | Up to 2,000 contacts |
| Operation Method | Physical buttons |
| Physical Buttons | 4 buttons: Up, Down, OK / Confirm and Back |
| Button Backlight | Supported |
| System | Embedded Linux operation system |
| Processor | Embedded high performance processor / embedded MCU processor |
| ROM | 8 MB |
| RAM / Storage | 64 MB |
| RS-485 / Module Interface | Module-connecting interface, 1 input and 1 output |
| Power Input | 12VDC from other module |
| Power Output | 12VDC for other module |
| Power Consumption | 2.5W / ≤3W depending on system listing |
| Protection Level | IP65 |
| Application Environment | Outdoor, when installed with compatible housing and correct sealing |
| Working Temperature | -20°C to 60°C |
| Working Humidity | 10% to 95%, non-condensing |
| Dimensions | 98.5 × 100 × 34.2mm |
| Best Use | Apartment intercoms, office entries, multi-tenant buildings, gated access points and Hikvision Gen2 modular door station systems |
| Installation Consideration | Requires compatible KD8 modular door station hardware, mounting frame, module connection and system configuration |
