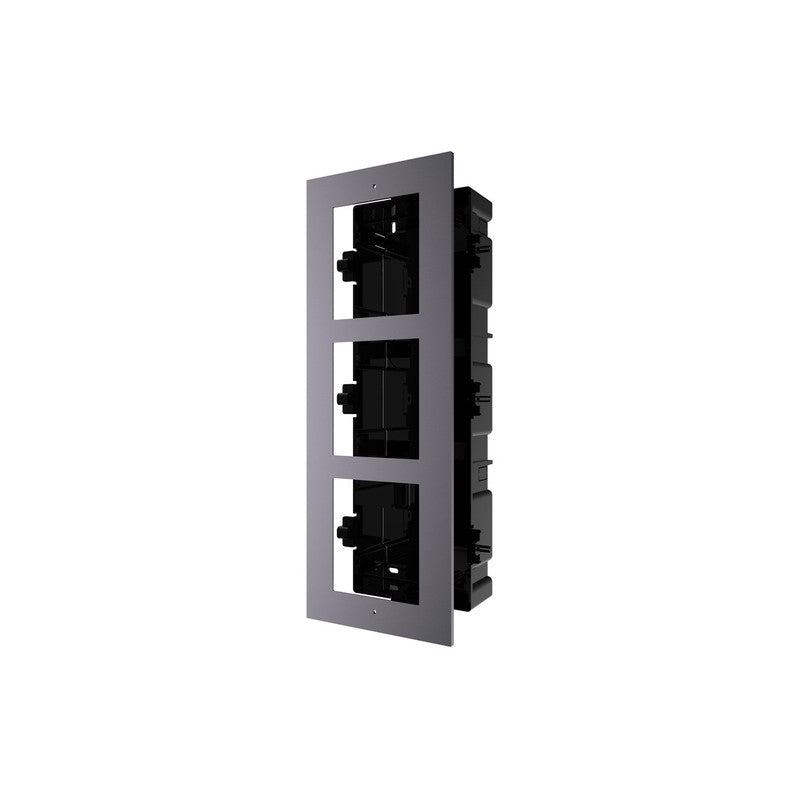

Hikvision Ds-kd-acf3 Gen2 Video Intercom Flush Mount Housing – 3 Module
SKU: DSKDACF3
$99.24
The Hikvision DS-KD-ACF3 Gen2 Video Intercom Flush Mount Housing is a surface mounting enclosure designed to support three modules for the DS-KD8003-IME1 door station. Constructed with an aviation aluminum cover and a plastic gang box, this housing provides a secure and durable installation environment for modular intercom components.
Key Features
- Supports the surface mounting of three modules for the Hikvision Gen2 Video Intercom system
- Constructed with an aviation aluminum cover and a plastic gang box
- Operates within a temperature range of -40°C to +60°C (-40°F to 140°F)
- Compatible with humidity levels between 10% and 95%
- Cover dimensions are 337.8 x 124 x 4 mm (13.3″ x 4.88″ x 0.16″)
- Gang box dimensions are 338.8 x 134 x 56 mm (13.33″ x 5.28″ x 2.20″)
- Designed for use with the DS-KD8003-IME1 door station which supports up to eight additional modules
Technical Specifications
| General | ||
|---|---|---|
| Material: | Cover: Aviation Aluminum, Gang box: Plastic | |
| Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
| Working Humidity: | 10% to 95% | |
| Dimensions(L × W × H): | Cover: 337.8 x 124 × 4 mm(13.3″ x 4.88″ x 0.16″) Gang Box: 338.8 x 134 × 56 mm(13.33″ x 5.28″ x 2.20″) |
|
