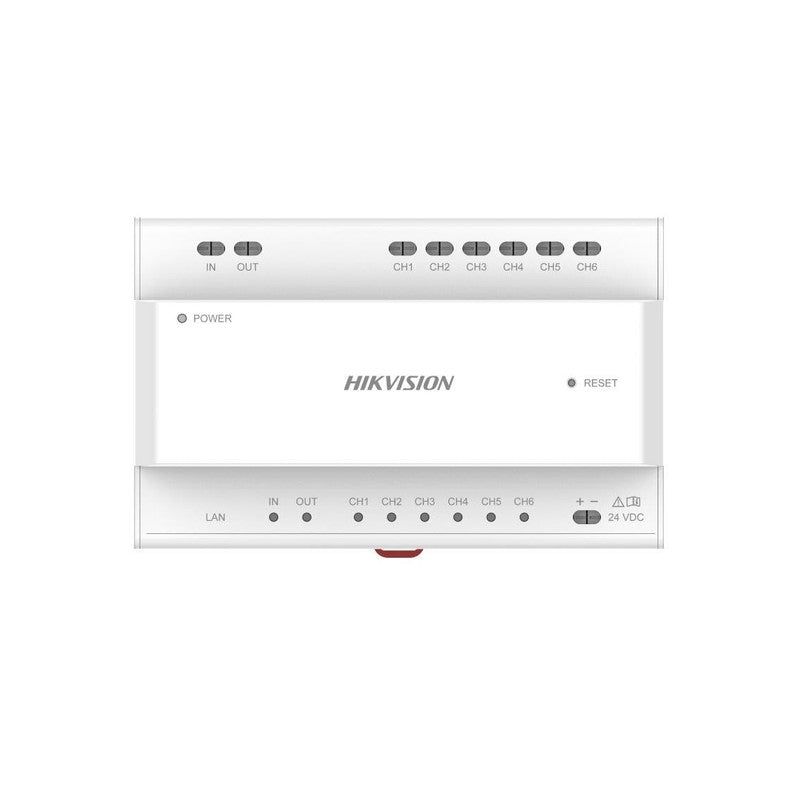

Hikvision Ds-kad706y-sp 2-wire IP Distributor With 6-port Cascade Interfaces, 1 Rj45 Port, 8 Interface Indicators & Din Rail Mounting
SKU: DSKAD706YSP
$172.95
The Hikvision DS-KAD706Y-SP is a DIN rail-mounted 2-wire IP distributor engineered for compatible Hikvision video intercom systems. It facilitates cascade networking and communication between distributor units without providing direct power to endpoint devices.
Key Features
- Features 6 two-wire cascade interfaces designed for network expansion without device power supply
- Includes 2 additional cascade interfaces compatible with DS-KAD704Y, DS-KAD706Y, and DS-KAD706Y-S series layouts
- Equipped with 8 interface indicators to provide visual status feedback during installation and maintenance
- Provides 1 RJ45 network interface for system connectivity
- Utilizes 24VDC input power for stable operation within structured low-voltage installations
- Designed for DIN rail mounting, making it suitable for equipment cabinets and communications cupboards
- Includes a reset button for system management and troubleshooting
Technical Specifications
| Model | DS-KAD706Y-SP |
| Product Type | 2-Wire IP Distributor for Hikvision video intercom systems |
| Primary Use | Cascade distribution and network communication in compatible 2-wire IP layouts |
| 2-Wire Cascade Interfaces | 6-port 2-wire cascade interfaces without device power supply |
| Additional Cascade Support | 2 cascade interfaces for DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series |
| RJ45 Interface | 1 RJ45 interface |
| Interface Indicators | 8 interface indicators |
| Reset Button | 1 reset button |
| Power Supply Input | 24VDC |
| Device Power Supply | No device power supply from the 6 cascade interfaces |
| Installation | DIN rail mounting |
| Working Temperature | -10°C to 55°C |
| System Architecture | Hikvision 2-wire IP video intercom systems |
| Best Use | 2-wire IP cascade systems, apartment intercoms, villa systems, commercial intercom layouts and DIN rail cabinet installations |
| Installation Consideration | Confirm system topology, cascade roles, 24VDC power input, RJ45 network path and endpoint power requirements before installation |
