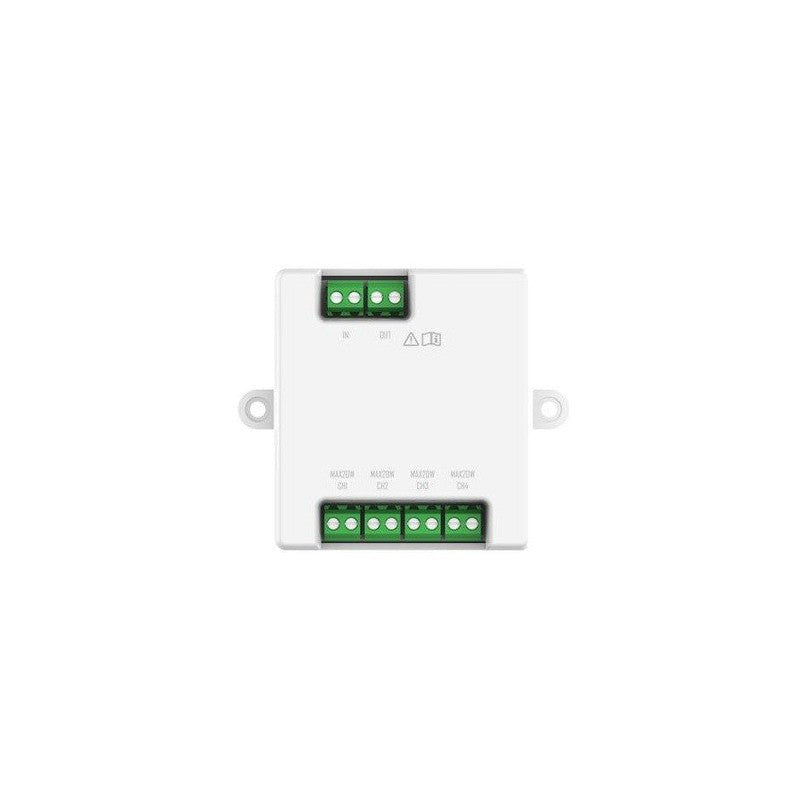

Hikvision Ds-kad7061ey 2-wire Hd Distributor With 4 Indoor Station Channels, 2 Cascade Interfaces, 6 Status Indicators & No Power Supply Required
SKU: DSKAD7061EY
$120.30
The Hikvision DS-KAD7061EY 2-Wire HD Distributor is a compact floor-shunt unit designed for compatible Hikvision 2-wire HD video intercom systems. It provides 4 two-wire interfaces for indoor station connections and 2 cascade interfaces for system expansion, operating without a separate local power supply by drawing power directly from the 2-wire bus.
Key Features
- 4 two-wire interfaces for indoor station connections
- 2 cascade interfaces for linking with other compatible distributor devices
- 6 status indicators for monitoring device and interface operation
- Powered through the 2-wire bus, eliminating the need for a local power supply
- Compact surface-mount design measuring 70.6 × 60 × 25mm
- Designed for use in apartments, villas, equipment cupboards, and low-voltage intercom locations
Technical Specifications
| Model | DS-KAD7061EY |
| Product Type | 2-Wire HD Distributor / floor-shunt distributor |
| Primary Use | Indoor station distribution and cascade support in compatible Hikvision 2-wire HD systems |
| Two-Wire Interfaces | 4 two-wire interfaces for indoor station connection |
| Cascade Interfaces | 2 cascade interfaces |
| Status Indicators | 6 indicators showing whether the device is working properly |
| Power Supply Requirement | No separate local power supply required |
| Power Source | Powered through compatible 2-wire bus / master distributor layout |
| Power Consumption | ≤2W |
| Installation | Surface mounting |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 10% to 90%, non-condensing |
| Dimensions | 70.6 × 60 × 25mm |
| Best Use | Apartment floor distribution, villa systems, indoor station branches, retrofit 2-wire HD layouts and compact intercom service locations |
| Installation Consideration | Confirm EY series compatibility, indoor station count, cascade layout, cable distance and power path before installation |
