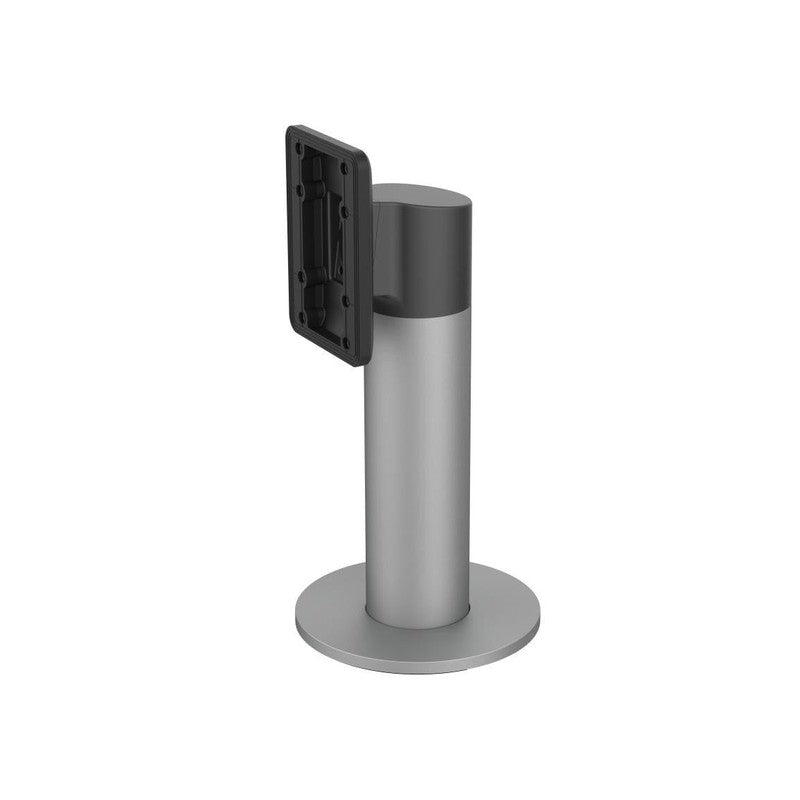

Hikvision Ds-kab6-zu1 Face Terminal Bracket With Gang Box Installation Support, Speed Gate & Turnstile Compatibility, Indoor/outdoor Use
SKU: DSKAB6ZU1
$196.35
The Hikvision DS-KAB6-ZU1 is a purpose-built face terminal bracket constructed from AL-6061 aluminium alloy, engineered to mount compatible Hikvision face recognition terminals onto speed gate and turnstile lanes. Measuring 100 x 100 x 196mm and weighing approximately 1.1kg, this accessory provides a stable, professional mounting solution for pedestrian access control systems in both indoor and outdoor environments.
Key Features
- Constructed from durable AL-6061 aluminium alloy for a stable and robust bracket structure.
- Supports gang box installation for compatible Hikvision face terminals on pedestrian access lanes.
- Compatible with supported Hikvision speed gate and turnstile models designated with “Pg”.
- Dimensions of 100 x 100 x 196mm with a weight of approximately 1.1kg.
- Listed for use in both indoor and outdoor application environments.
- Designed for commercial lobbies, office entry lanes, apartment access points, and education campuses.
Technical Specifications
| Model | DS-KAB6-ZU1 |
| Product Type | Face terminal bracket for compatible speed gates and turnstiles |
| Primary Function | Mounting compatible face recognition terminals on supported Hikvision speed gate and turnstile lane hardware |
| Installation Method | Gang box installation support for compatible face recognition terminals |
| Speed Gate and Turnstile Compatibility | Supported models with “Pg” in the model name |
| Application Environment | Indoor and outdoor |
| Material | AL-6061 aluminium alloy |
| Dimensions | 100 x 100 x 196mm |
| Weight | Approx. 1.1kg |
| Installation Consideration | Confirm face terminal model, gang box support, speed gate or turnstile model designation, mounting height, user approach direction and cable routing before installation |
| Best Use Environments | Corporate lobbies, office entry lanes, apartment access points, transport facilities, education campuses and secure commercial access control installations |
| Wall Mounting | Not intended for standalone wall mounting. Select the appropriate Hikvision wall bracket or rain shield for wall-mounted terminal installations. |
