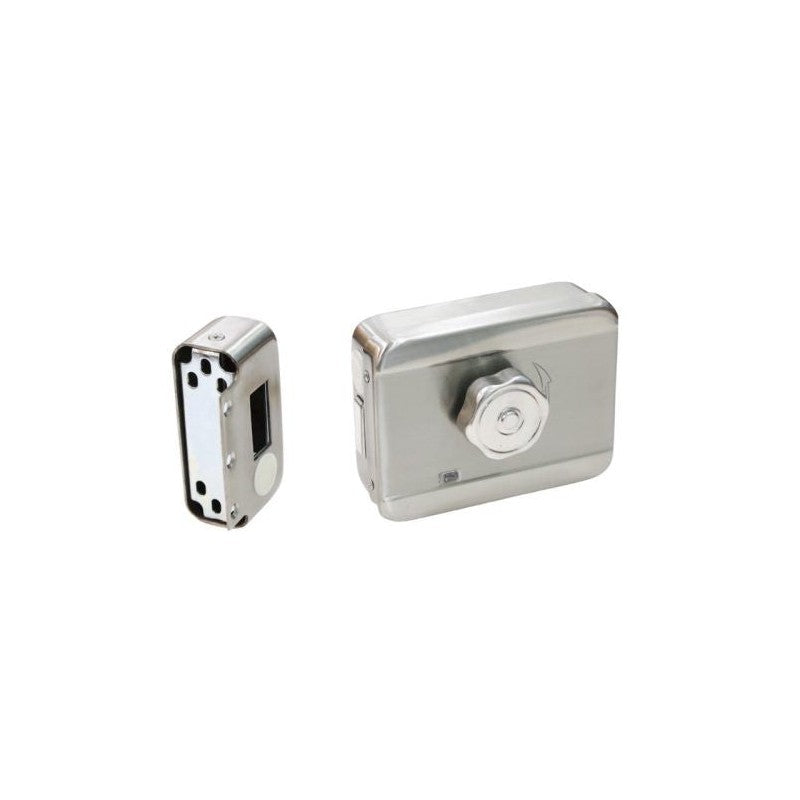

Hikvision Ds-k4e100 Pro Series Electric Motor Lock

The Hikvision DS-K4E100 Pro Series Electric Motor Lock is a stainless steel locking mechanism designed for integration with access control and video intercom systems. It features high-sensitivity switching technology and a mechanical lifespan of over 500,000 operations, supporting both left and right opening doors in residential and commercial environments.

Key Features

• Constructed from stainless steel with a compact dimension of 130 mm × 100 mm × 61.25 mm
• Operates on a DC 12V ± 10% power supply with a working current of 350 mA and standby current of 25 mA
• Includes an automatic relocking mechanism that secures the door 9 seconds after opening if no entry is detected
• Supports intelligent lock status detection and door contact monitoring for system feedback
• Compatible with Hikvision access control and video intercom systems for centralized management
• Features a 20 mm lock tongue and clear electrical state definitions (NO/NC/COM) for easy integration
• Rated for a working temperature range of -20 °C to 50 °C (-4 °F to 122 °F)
