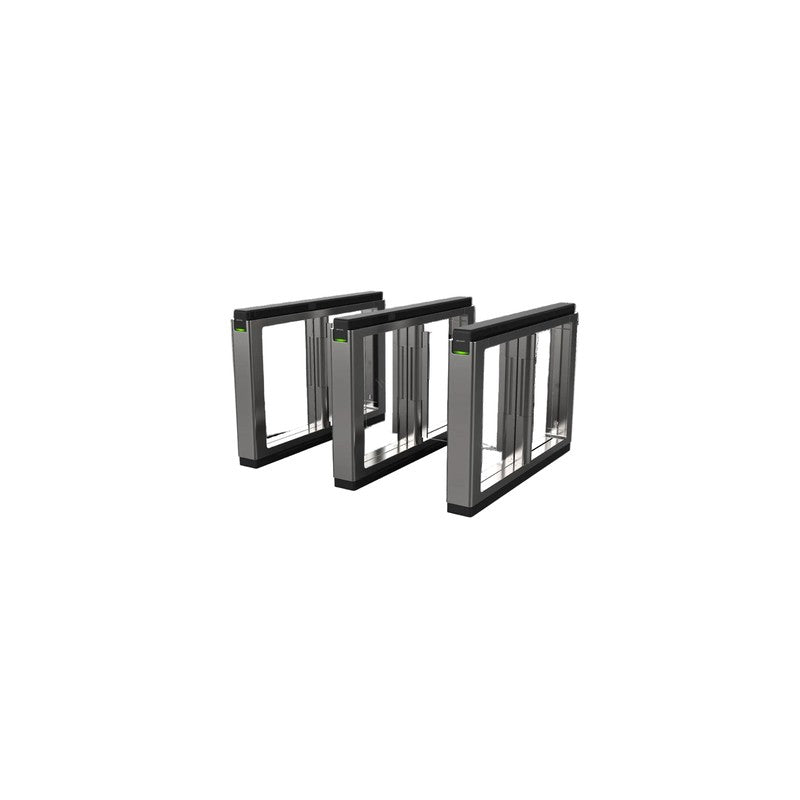

Hikvision Ds-k3b801bx-m/mpg-dp90 Swing Barrier Middle Lane 900mm, 2 Way Mifare, People Count

The Hikvision DS-K3B801BX-M/MPG-DP90 is a 900mm middle-lane swing barrier designed for high-traffic access control environments. This unit supports two-way traffic with MIFARE card authentication and integrated people counting, utilizing a robust AISI304 stainless steel pedestal and acrylic glass barriers.

Key Features

• 900mm lane width configuration suitable for middle-lane installation in multi-lane setups.
• Two-way swing barrier mechanism with a throughput capacity of 30 to 60 persons per minute.
• Supports MIFARE card authentication alongside face, fingerprint, and QR code modes.
• Constructed with 2mm thick AISI304 stainless steel pedestals and acrylic glass barriers.
• Equipped with 24 pairs of IR light detectors for precise passage detection and anti-tailgating.
• System reliability rated for over 6 million cycles with a servo motor drive.
• Operates on a 100 to 240 VAC power supply and functions in temperatures ranging from -10 °C to 55 °C.
• Includes 4 RS-485 and 4 RS-232 interfaces for network integration and peripheral connectivity.
