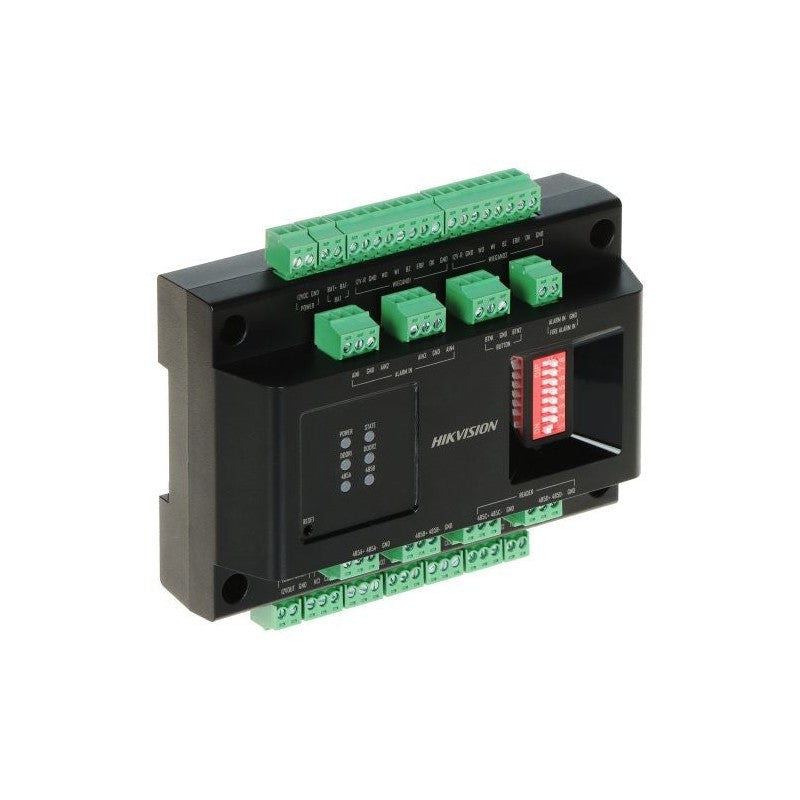

Hikvision Ds-k2m002x Access Control – 2 Door Control Module

The Hikvision DS-K2M002X Access Control – 2 Door Control Module is a versatile access module designed to extend the capabilities of existing access control systems. It supports up to two doors and connects to Hikvision access controllers via RS-485, accommodating both RS-485 (OSDP) and Wiegand card readers for wide compatibility.

Key Features

• Controls up to 2 doors with support for 4 RS-485 (OSDP) and 2 Wiegand card readers
• Communicates with access controllers via RS-485 interface
• Includes alarm input/output, door contacts, exit buttons, and tamper detection support
• Features six LED indicators for real-time feedback on power, communication, and door status
• Supports advanced access logic including interlocking, first-person-in, and multi-factor authentication via controller
• Integrates built-in battery charging and discharging capability
• Configurable via web browser through the connected access controller
• Installs securely using a DIN guide rail inside an enclosure or cabinet
