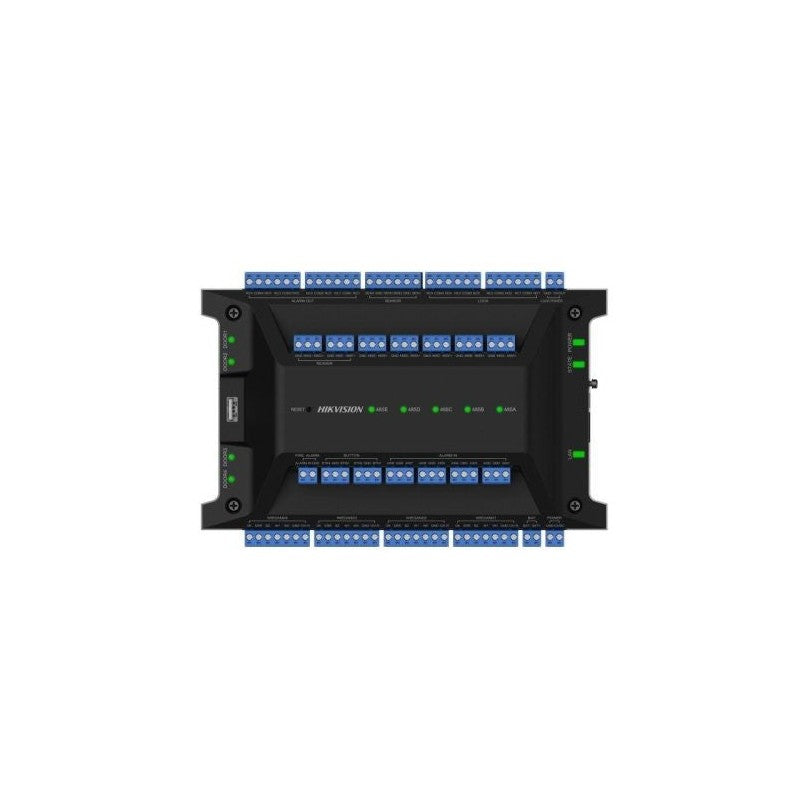

Hikvision Ds-k2704x-p 4 Door Access Controller Module (no Panel)

The Hikvision DS-K2704X-P is a high-capacity, panel-mounted 4-door access controller module engineered for secure and scalable access control systems. Designed for low-voltage environments with a 12V DC input, this unit supports native management of four doors and can expand to control up to 128 doors via integration with additional access modules over RS-485.

Key Features

• Manages 4 doors natively, expandable to 128 doors with access modules
• Web browser-based configuration eliminates the need for additional software installation
• Supports anti-passback, multi-door interlocking, and multi-factor authentication
• Redundant RS-485 bus design supports up to 16 modules per loop for stable communication
• Handles 100,000 users, 200,000 cards, and 10,000 fingerprints with 600,000 event logs
• Features 8 RS-485 reader interfaces (OSDP) and 4 Wiegand reader interfaces
• Includes 4 lock control outputs, 4 exit button inputs, and backup battery support
