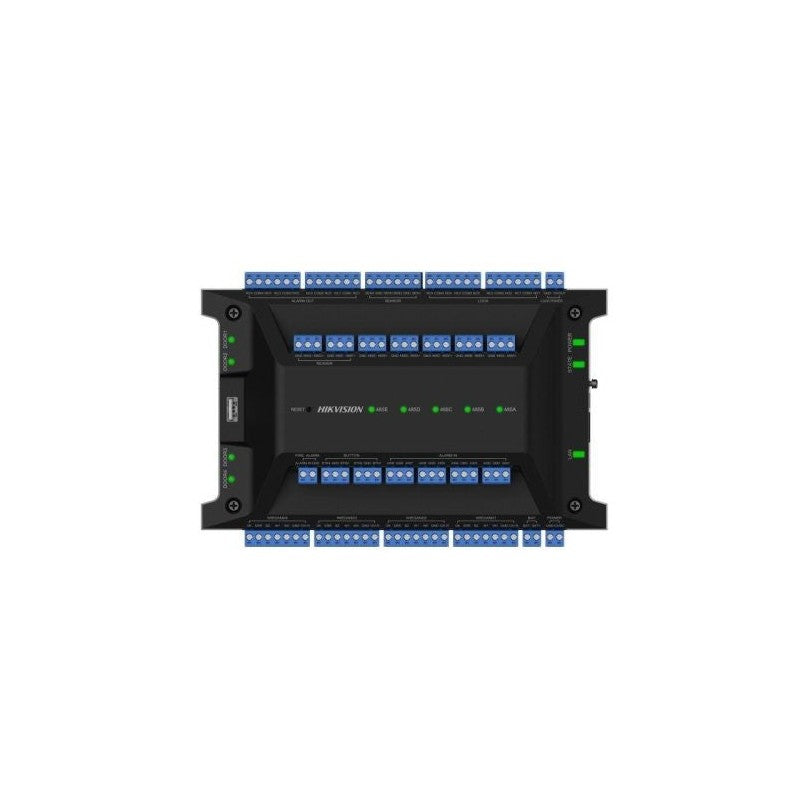

Hikvision Ds-k2704x 4 Door Access Controller

The Hikvision DS-K2704X 4 Door Access Controller is a high-capacity unit engineered for enterprise-level access control systems requiring robust security and scalability. It supports native management of four doors and can expand to 128 doors through the integration of DS-K2M002X access modules, making it suitable for mission-critical environments such as airports, banks, and large organizations.

Key Features

• Native 4-door control with scalability to 128 doors via 62 DS-K2M002X access modules
• Supports 100,000 users, 200,000 cards, and 10,000 fingerprints with 600,000 event storage capacity
• Features 8 RS-485 card reader interfaces (OSDP) and 4 Wiegand inputs (26/34-bit, customizable)
• Includes 4 lock control, 4 door contact, 4 exit button, 8 alarm input, and 4 alarm output I/O channels
• Redundant RS-485 wiring with five downlink interfaces ensures stable communication
• Web-based configuration allows for complete setup and management without dedicated software
• Advanced security functions include multi-door interlocking, anti-passback, and multi-factor authentication
• Power supply accepts 100–240V AC with 12 LED status indicators and backup battery charging support
