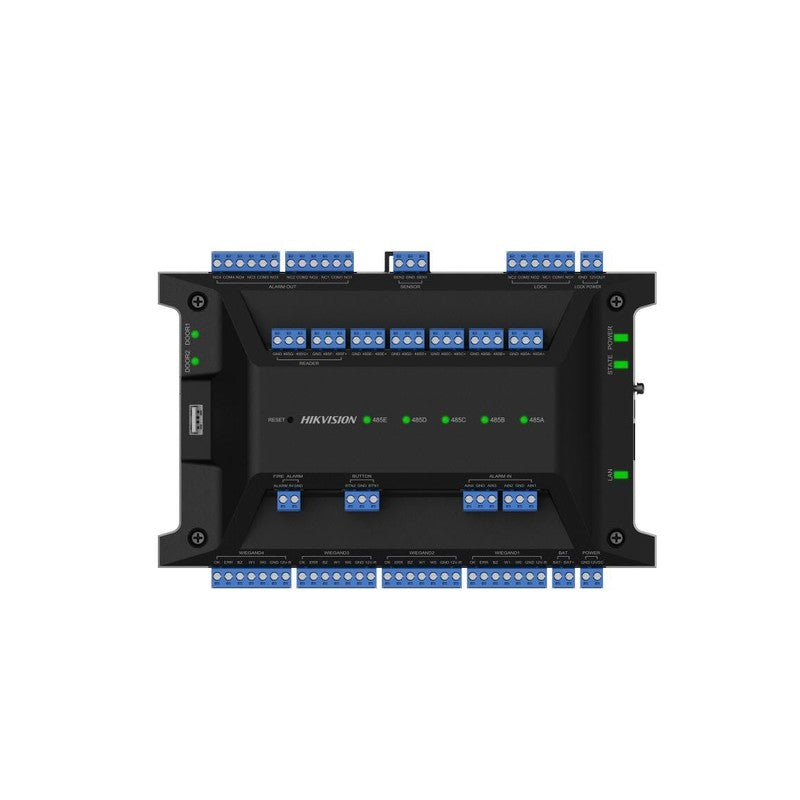

Hikvision Ds-k2702x-p 2 Door Access Controller

The Hikvision DS-K2702X-P 2 Door Access Controller is a Linux-based access control solution engineered for scalable security in complex environments such as corporate campuses, airports, and banks. It natively manages two doors and supports expansion to 126 doors through the integration of DS-K2M002X access modules via RS-485.

Key Features

• Supports native management of 2 doors with expandability to 126 doors via RS-485 modules
• Features a 5-channel RS-485 downstream design with redundancy and dual-bus architecture for communication stability
• Utilizes web-based configuration and management, eliminating the need for additional software
• Includes advanced access functions such as multi-door interlocking, anti-passback, and multi-factor authentication
• Supports 100,000 users, 200,000 cards, and 10,000 fingerprints with 600,000 event storage capacity
• Compatible with 4 RS-485 readers (OSDP protocol) and 4 Wiegand readers
• Provides 2 lock control, 2 exit button, 2 door contact, 4 alarm inputs, and 4 alarm outputs
• Supports battery backup with charge/discharge capability and multiple status indicators for health monitoring
