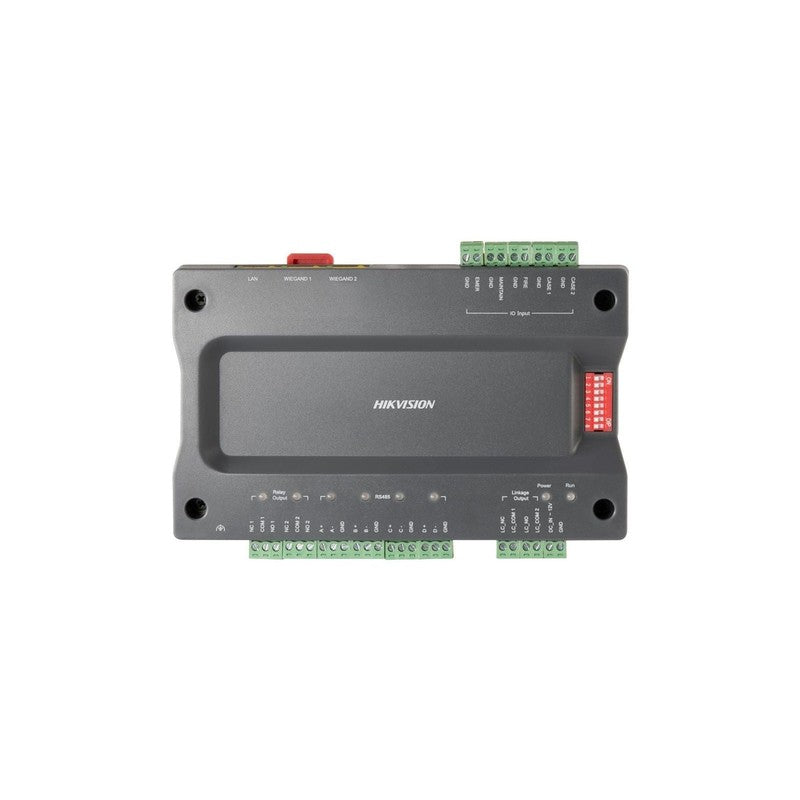

Hikvision Ds-k2210 Master Elevator Controller
SKU: DSK2210
$523.95
The Hikvision DS-K2210 Master Elevator Controller is a dedicated access control device engineered for secure elevator management. It supports up to 20,000 card registrations and 50,000 event records, utilizing a 32-bit processor to ensure reliable performance in demanding environments.
Key Features
- Supports up to 2 RS-485 or 2 Wiegand card readers for flexible integration
- Provides 5 relay outputs for comprehensive elevator control functions
- Features dedicated inputs for panic, fire alarm, and maintenance buttons
- Utilizes TCP/IP, RS-485, and Wiegand communication protocols
- Operates on a 12 VDC ±15% power supply with guide rail installation
- Includes real-time clock (RTC) support and status indicators for power, network, and relay states
- Designed for extreme operating temperatures ranging from -40°C to +70°C
Technical Specifications
| System Parameters | ||
|---|---|---|
| Card Reading Mode: | Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers | |
| Storage: | 20,000 Cards and 50,000 Events | |
| Indicator: | Power On: Solid Green Running Properly: Flashing Green Running Exception: Solid Red Serial Port Not Communicating: Off Serial Port Communicating: Solid Green Relay NC: Off Relay NO: Solid Green Network Disconnected: Off Network Cable Connected: Solid Yellow, Flashing Green Network Armed: Solid Yellow, Flashing Green |
|
| Processor: | 32-bit | |
| RTC: | Support | |
