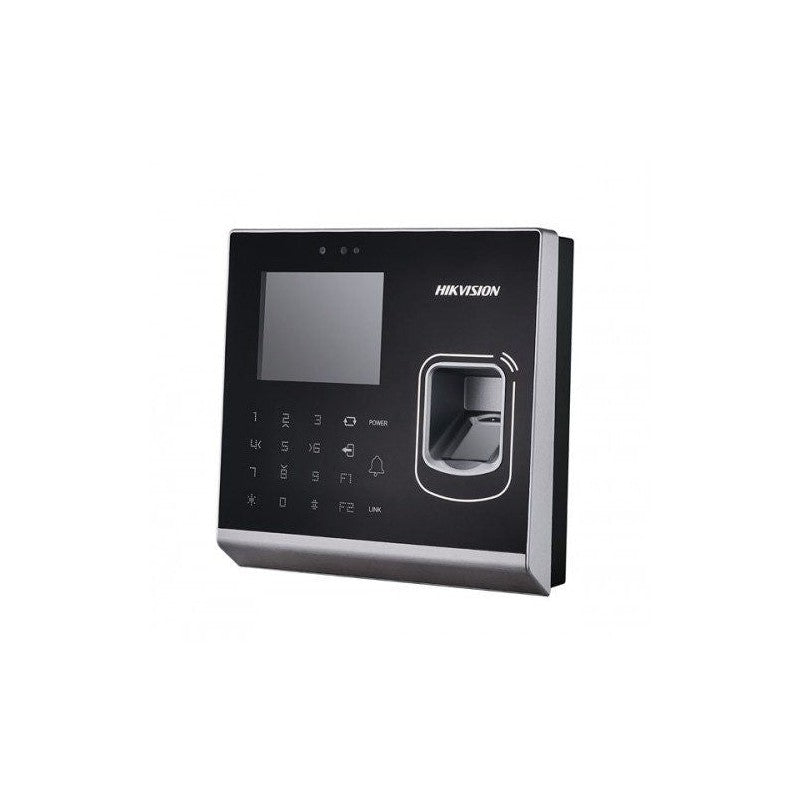

Hikvision Ds-k1t201mf-cn Single Door Stand Alone Access Control Terminal With Fingerprint Reader
SKU: DSK1T105MCN1
$752.10
The Hikvision DS-K1T201MF-CN is a stand-alone access control terminal designed for single-door applications, integrating optical fingerprint recognition, face detection, and smart card reading capabilities. This device features a 2.8-inch LCD display and a 2MP HD camera, supporting both offline operation and remote management via TCP/IP or Wi-Fi.
Key Features
- Optical fingerprint recognition module supporting 1:1 and 1:N verification modes
- 2.8-inch LCD display screen for time, date, and status information
- Built-in 2MP HD camera for face detection and picture capturing
- Storage capacity for up to 100,000 valid cards and 300,000 access control events
- Supports multiple authentication modes including card, fingerprint, password, and combinations thereof
- Communication via wired network (TCP/IP) or Wi-Fi, with RS-485 and Wiegand (26/34) interfaces for external readers
- Compatible with Mifare cards and manageable via iVMS-4200 software or local keypad
Technical Specifications
| System Parameters | ||
|---|---|---|
| Card Reading Frequency: | Mifare Card (DS-K1T105M/M-C): 13.56MHz | |
| Valid Card/ Swiping Record: | 100,000 Cards and 300,000 Swiping Card Records | |
| Operation System: | Linux | |
| Storage: | 256M Storage | |
| Card Reading Mode: | Supports Mifare card reading, including card No. reading & writing function (DS-K1T105M/M-C) | |
| Built-in Micro SD Card: | Max.32G | |
| Camera: | 2MP | |
| Processor: | ≥1GHz, 32 Bit High-performance Processor | |
