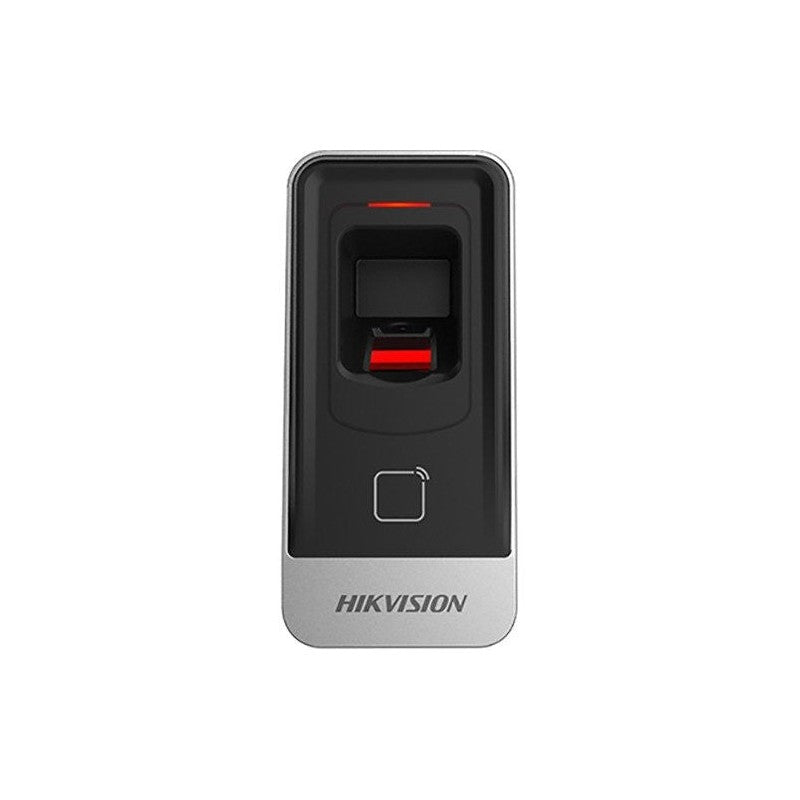

Hikvision Ds-k1201mf Biometric Fingerprint Reader

The Hikvision DS-K1201MF Biometric Fingerprint Reader is a surface-mounted access control terminal designed for secure identification using optical fingerprint scanning and Mifare card reading. It supports multiple authentication modes, including standalone fingerprint, card, and combined card-plus-fingerprint verification, ensuring robust security for high-traffic environments.

Key Features

• Optical fingerprint module with red backlight, supporting 1:N and 1:1 comparison modes with a storage capacity for 5,000 fingerprints.
• Integrated Mifare card reader with a reading range of ≤50mm, enabling flexible credential management.
• High-performance 32-bit processor ensures fast processing with fingerprint comparison times of ≤1 second for 1:1 and ≤1.5 seconds for 1:3000 modes.
• Low error rates with a False Rejection Rate (FRR) of ≤0.01% and a False Accept Rate (FAR) of ≤0.001%.
• RS-485 communication interface operating at 19200bps-N-8-1, featuring optical coupling isolation and noise suppression for stable data transmission.
• IP65 protection rating with a wide operating temperature range of -40°C to +70°C, suitable for both indoor and outdoor installations.
• Includes built-in tamper alarm, buzzer for status indication, and LED indicators for power and system status.
