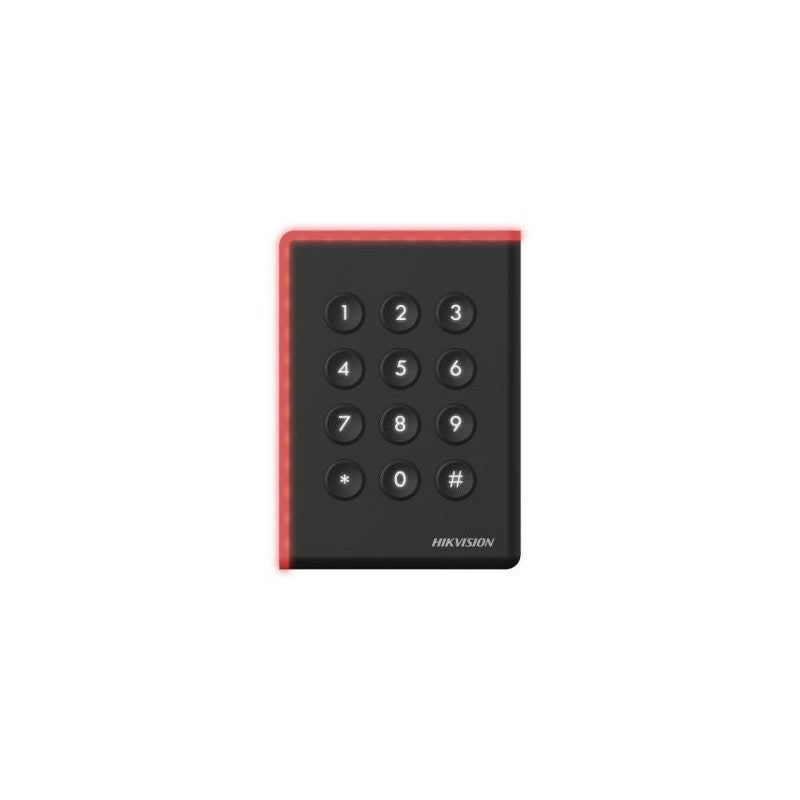

Hikvision Ds-k1108am Pro Series M1 Card Reader With Rs-485, Wiegand, Osdp, Tamper-proof Function & Ip65 Weatherproof Design
SKU: DSK1108AM
$91.05
The Hikvision DS-K1108AM Pro Series M1 Card Reader provides 13.56MHz M1/Mifare card authentication with multi-protocol support for RS-485, Wiegand, and OSDP in a compact wall-mounted unit. Designed for commercial and residential access control environments, this reader features an IP65-rated weatherproof housing and tamper-proof detection to ensure reliable operation at controlled entry points.
Key Features
- Reads ISO 14443-A compliant M1/Mifare cards at 13.56MHz with a maximum range of 50mm
- Supports RS-485, Wiegand W26/W34, and OSDP protocols for compatibility with various access control systems
- IP65-rated housing protects against dust ingress and direct water exposure for indoor and outdoor installation
- Integrated tamper-proof function alerts the access control system if the unit is interfered with or removed
- Built-in buzzer provides audible feedback at the point of card presentation
- Compact dimensions of 123 x 88 x 21mm with power consumption of 2W or less
- Supports online upgrades through compatible Hikvision access control infrastructure
Technical Specifications
| Model | DS-K1108AM |
| Product Type | Pro Series M1 Card Reader |
| Card Type | M1 / Mifare card |
| Card Frequency | 13.56MHz |
| Card Standard | ISO 14443-A |
| Card Reading Distance | Up to 50mm |
| Communication Protocols | RS-485, Wiegand W26/W34, OSDP over RS-485 |
| RS-485 Interface | 1 x RS-485 |
| Wiegand Formats | W26 and W34 |
| OSDP Support | Supported over RS-485 |
| ID Settings | Via DIP switch |
| Keypad | Not included |
| Indicators | Power indicator LED and status LED |
| Buzzer | Built-in beeper |
| Tamper-Proof Function | Supported |
| Online Upgrade | Supported |
| Power Supply | 12VDC |
| Power Consumption | 2W or less |
| Protective Level | IP65 |
| Working Temperature | -20 degrees Celsius to 65 degrees Celsius |
| Working Humidity | 10% to 90%, non-condensing |
| Installation | Wall mounting |
| Dimensions | 123 x 88 x 21mm |
| Net Weight | Approx. 0.14kg |
| Gross Weight | Approx. 0.37kg |
