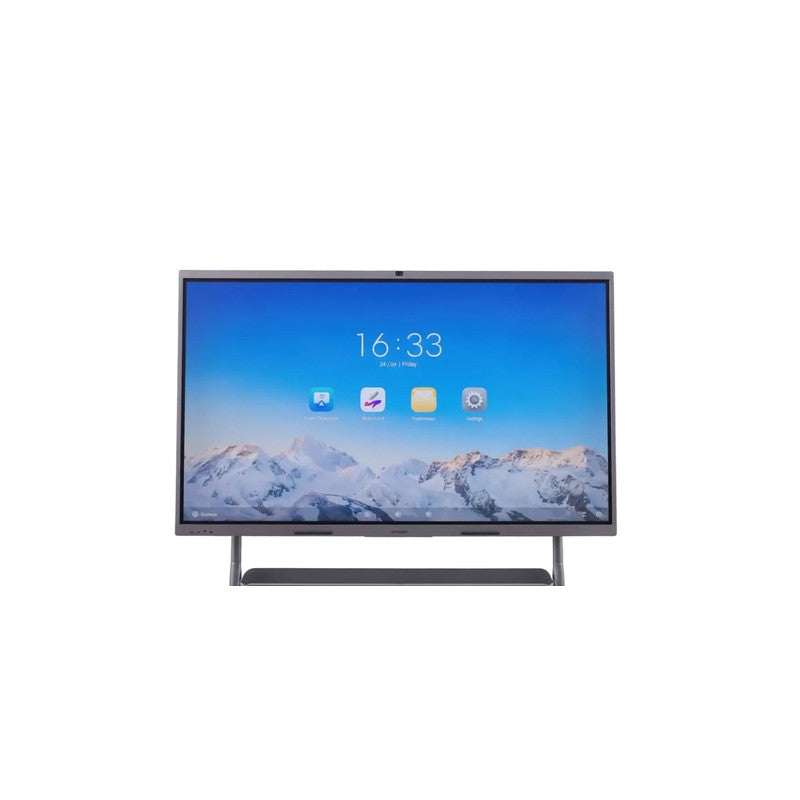

Hikvision Ds-d5c86rb/b 86-inch 4K Interactive Touch Screen Display Monitor W/ Camera And Microphone Array
SKU: DSD5C86RBB
$7,386.00
The Hikvision DS-D5C86RB/B is an 86-inch 4K interactive flat panel designed for conference rooms, training centres, and education environments requiring high-performance collaborative displays. It features a fully integrated camera and microphone array, supporting active annotation, whiteboarding, and live collaboration in professional settings.
Key Features
- 86-inch DLED-backlit panel with UHD 4K resolution (3840 x 2160) and 10-bit colour depth covering over 1 billion colours
- 50-point simultaneous infrared multi-touch capability with a response time of 2 ms or less
- Native Android 13.0 operating system with support for an optional Windows OPS module for video conferencing and productivity applications
- Integrated 4K camera with 48 MP photo capture and built-in microphone array for seamless video conferencing
- Display performance of 400 cd/m² brightness and 5000:1 contrast ratio, covering 72% of the NTSC colour gamut
- Built-in network switch chip that eliminates the need for external switching hardware, simplifying installation
Technical Specifications
| Model | DS-D5C86RB/B |
| Screen Size | 86 inches |
| Display Resolution | 3840 x 2160 (UHD 4K) |
| Backlight Type | DLED |
| Brightness | 400 cd/m² |
| Contrast Ratio | 5000:1 |
| Colour Depth | 10-bit (1 billion+ colours) |
| Colour Gamut | 72% NTSC |
| Touch Technology | Infrared |
| Multi-Touch Points | Up to 50 simultaneous points |
| Touch Response Time | 2 ms or less |
| Operating System | Android 13.0; optional Windows via OPS module |
| Built-In Camera | 8 MP video (4K), 48 MP photo, wide field of view |
| Microphone | 8-array omni-directional, echo reduction, smart noise cancellation, up to 12 m pickup |
| Wireless Connectivity | Wi-Fi 2.4 GHz and 5 GHz, Bluetooth 5.1, NFC (Android screen mirroring) |
| Video and Display Inputs | HDMI, VGA, DisplayPort, USB |
| Built-In Network Switch | Yes – integrated chip, eliminates external switch |
| Certification | EDLA (Enterprise Device Licensing Agreement) |
| Dimensions (W x H x D) | 1960.5 mm x 1173.7 mm x 82.5 mm |
| Net Weight | 65.13 kg |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH |
