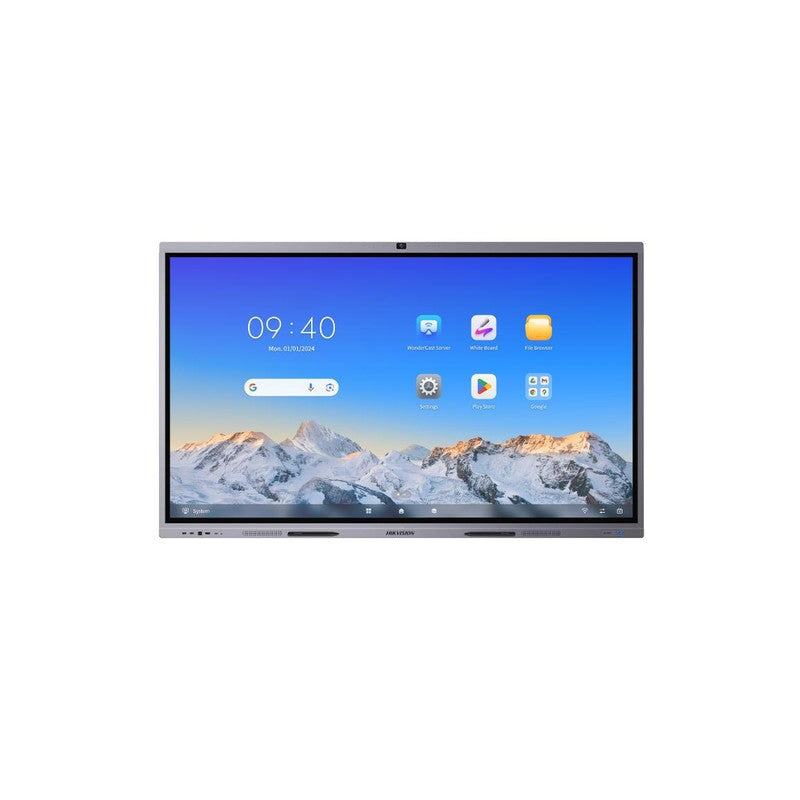

Hikvision Ds-d5c75rb/b 75-inch 4K Interactive Touch Screen Display Monitor
SKU: DSD5C75RBB
$6,448.83
The Hikvision DS-D5C75RB/B is a 75-inch 4K interactive touch screen display designed for boardrooms, training rooms, and security control centres. This all-in-one unit integrates a high-resolution VA panel with built-in Android 13, a 48MP conferencing camera, and an 8-array omni-directional microphone to support collaborative work and video conferencing.
Key Features
- 75-inch 4K UHD VA panel with 3840 x 2160 resolution, 400 cd/m2 brightness, and 5000:1 static contrast ratio
- 50-point infrared multi-touch layer with a response time of under 2 ms and ±0.5 mm precision
- Integrated 48MP conferencing camera supporting 4K video capture with a 120-degree diagonal field of view
- 8-array omni-directional microphone system for clear audio capture in collaborative environments
- Connectivity options including dual 1000 Mbps LAN ports, WiFi 6, and Bluetooth 5.1
- 65W Type-C front charging port for connected devices
- Anti-glare tempered glass surface rated at 9H hardness for durability in active use
Technical Specifications
| Model | DS-D5C75RB/B |
| Screen Size | 75 inch |
| Resolution | 3840 x 2160 at 60 Hz (4K UHD) |
| Panel Type | VA with DLED backlight |
| Brightness | 400 cd/m2 (typical) |
| Contrast Ratio | 5000:1 static / 30,000:1 dynamic |
| Viewing Angle | 178 degrees horizontal / 178 degrees vertical |
| Surface Glass | Anti-glare tempered glass, 9H surface hardness (Pencil), zero lamination |
| Touch Type | Infrared, up to 50-point multi-touch, response time under 2 ms, precision plus or minus 0.5 mm |
| Built-In OS | Android 13.0 with optional Windows via OPS module |
| Processor / RAM / Storage | Quad-core Cortex-A76 (2.4 GHz) + Quad-core Cortex-A55 (1.8 GHz), 8GB RAM, 128GB built-in storage |
| Built-In Camera | 48MP (photos) / 8MP (video, up to 4K), 120 degree diagonal FOV, distortion under 2.5% |
| Microphone | 8-array omni-directional, 12m voice pick-up distance, echo reduction and smart noise cancellation |
| Speakers | Built-in 2 x 20W + 25W |
| Connectivity | 2 x LAN 1000 Mbps (built-in network switch), WiFi 6 (2.4G/5G, 2×2 MIMO), Bluetooth 5.1, NFC |
| Video Inputs | HDMI 2.0 x 3, VGA x 1, DisplayPort 1.2 x 1 |
| USB / Type-C | USB 3.0 x 4, USB 2.0 x 1, Type-C x 2 (65W front charging, 15W side charging) |
| Power Supply | 100 to 240 VAC, 50/60 Hz, average consumption under 150W, standby under 0.5W |
| VESA Mount | 800mm x 400mm (4 x M8-25mm) |
| Dimensions / Weight | 1713.2mm x 1034.5mm x 82.5mm, 51.23kg net |
| Panel Lifespan | 50,000 hours, rated for 7 x 16 hours daily operation |
| Working Temperature | 0 degrees C to 40 degrees C |
