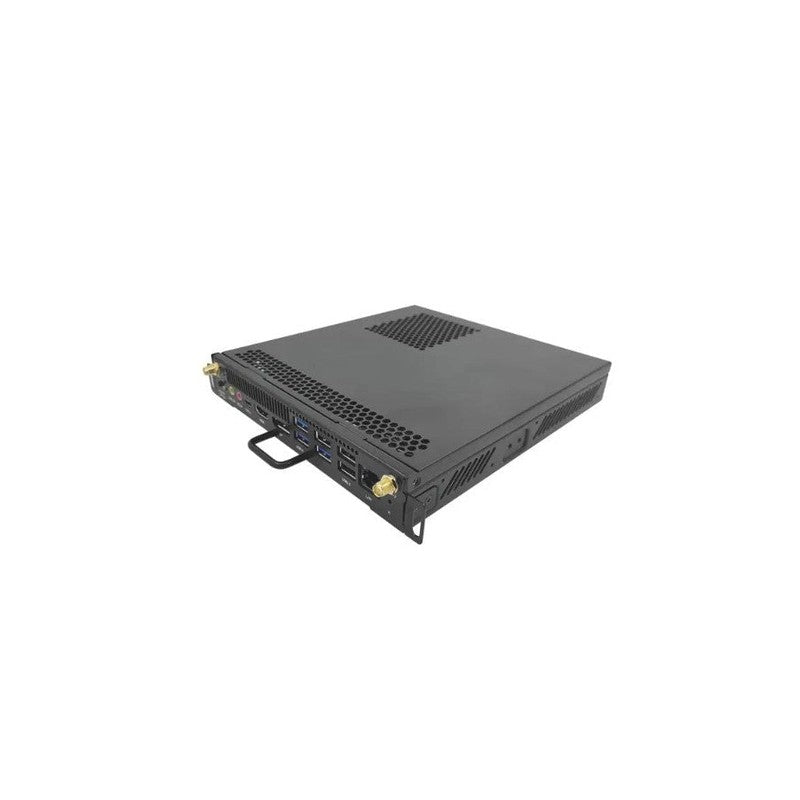

Hikvision Ds-d5ac9c5-8s2 Ops Module
SKU: DSD5AC9C58S2
$2,209.92
The Hikvision DS-D5AC9C5-8S2 OPS module is an Open Pluggable Specification computing unit designed for integration with compatible interactive flat panels. It functions as a self-contained workstation, eliminating the need for external desktop or mini PC hardware in presentation-heavy and display-intensive environments.
Key Features
- Intel Core i5 9400H processor running at 2.5GHz on the Coffee Lake architecture
- Intel UHD Graphics 630 supporting H.265 decoding and 4K resolution output
- 8GB of memory with dual-channel support for responsive performance
- 256GB M.2 NVMe system drive for fast start-up times
- Integrated Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 connectivity
- 3 USB 3.0 ports, 3 USB 2.0 ports, and 1 Type-C port for peripheral connectivity
- 1 HDMI output and 1 DisplayPort output for flexible signal routing
Technical Specifications
| Processor | Intel Core i5 9400H |
| CPU Clock Speed | 2.5GHz |
| Platform Architecture | Intel Coffeelake |
| PCH | Intel Z370 |
| Graphics | Intel UHD Graphics 630 |
| Video Support | H.265 decoding, 4K resolution |
| Memory | 8GB, dual channel |
| Storage | 256GB M.2 NVMe |
| Network Interface | RJ45 x1, 10/100/1000M |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, dual antenna |
| Bluetooth | Bluetooth 4.2 |
| USB Ports | 3x USB 3.0, 3x USB 2.0, 1x Type-C |
| Video Output | HDMI x1, DisplayPort x1 |
| Cooling | Single brass heatsink and single fan |
| Input Voltage | 12V-19V DC |
| Max Power Consumption | 60W |
| Standby Consumption | 0.5W |
| Working Temperature | 0°C to 40°C |
| Working Humidity | 10%-90% |
| Dimensions (W x H x D) | 180 x 195 x 30mm |
| Net Weight | Approximately 1.24kg |
| Colour | Black |
