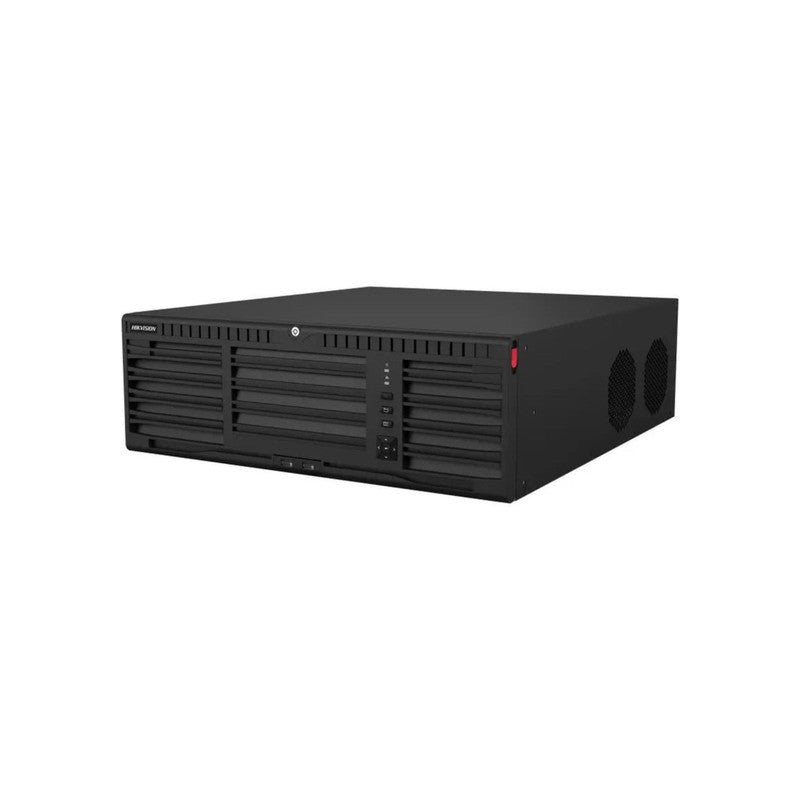

The Hikvision DS-9664NI-M16 64ch M-series NVR is a 64-channel, 3RU rack-mount recorder engineered for high-density commercial and industrial CCTV deployments. It provides 400 Mbps of dual bandwidth and supports 8K or dual 4K display output, ensuring stable performance across multi-megapixel camera networks.
Key Features
- 64-channel IP recording capacity suitable for large-scale sites such as warehouses, shopping centres, and multi-building campuses
- 400 Mbps incoming and outgoing bandwidth to sustain heavy loads from 4K, 8MP, and 12MP cameras
- Two HDMI and two VGA outputs supporting independent 8K or dual 4K video sources for control rooms
- 16 SATA bays compatible with surveillance-grade hard drives and RAID 0, 1, 5, 6, 10, and N+M hot spare configurations
- 3RU form factor designed for standard rack-mount installations in server rooms and monitoring stations
- Integration support for specialist Hikvision devices including ANPR, fisheye, and people-counting cameras
- Supplied without hard drives and requires external PoE switches for camera connectivity
Technical Specifications
| Model | DS-9664NI-M16 |
| Series | Hikvision Ultra / M-Series |
| Form Factor | 3RU rack-mount |
| IP Camera Inputs | Up to 64 channels |
| Incoming Bandwidth | Up to 400 Mbps |
| Outgoing Bandwidth | Up to 400 Mbps |
| Decoding Capacity | 2-ch@32MP / 2-ch@24MP / 4-ch@12MP / 8-ch@8MP / 16-ch@4MP / 32-ch@1080p |
| Video Outputs | 2 x HDMI (independent source), 2 x VGA (independent source) |
| Display Resolution | 8K or dual 4K video output |
| HDD Bays | 16 x SATA interfaces |
| Max HDD Capacity per Drive | Up to 16TB per HDD |
| RAID Support | RAID 0, 1, 5, 6, 10 and N+M hot spare |
| Specialist Camera Support | People counting, ANPR, fisheye cameras |
| PoE Ports | None – requires external PoE switches |
| Power Supply | Redundant power supply |
| Streaming Technology | Advanced streaming for smooth live view in poor network conditions |
| Hard Drive Included | No |
