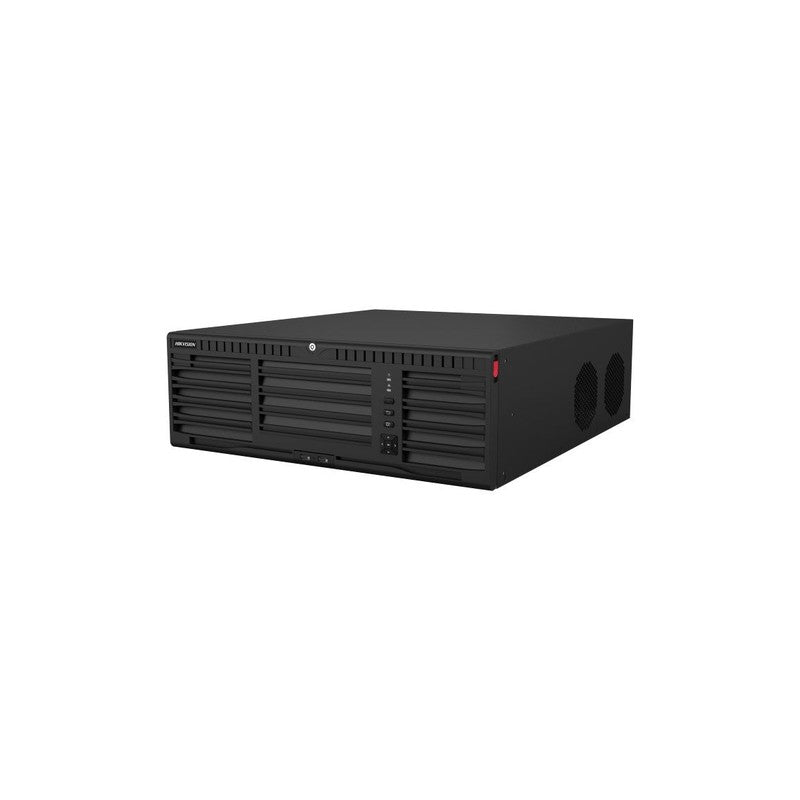

Hikvision Ds-9632ni-m16 32ch M-series Nvr, 320mbps, 8k, Vga/hdmi, 16 Bay, 3ru, No HDD
SKU: DS9632NIM16
$3,709.86
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-3e0310hp-e 8 Port Fast Ethernet Unmanaged POE Switch
$202.20
Hikvision Ds-3e1528p-ei 24-port Gigabit Smart Managed POE Switch – 370w POE Budget
$787.20
Upgrades Subtotal:
$0.00
The Hikvision DS-9632NI-M16 is a 32-channel, 3U rack-mount Network Video Recorder engineered for large-scale commercial and enterprise surveillance installations. It delivers 320 Mbps incoming and 400 Mbps outgoing bandwidth to support high-channel-count IP camera deployments without throughput bottlenecks.
Key Features
- 32-channel IP camera support with 320 Mbps incoming and 400 Mbps outgoing bandwidth
- Dual HDMI and dual VGA outputs supporting 8K single-display or simultaneous dual 4K display
- 16 SATA bays supporting up to 16 TB per drive for scalable storage capacity
- RAID 0, 1, 5, 6, and 10 modes with N+M hot spare for data redundancy and protection
- Native integration for people counting, ANPR, and fisheye cameras
- Advanced streaming technology for stable live view across congested or degraded network links
- 3U rack-mount form factor designed for large-site and multi-building campus environments
Technical Specifications
| Model | DS-9632NI-M16 |
| Series | M-Series |
| IP Camera Channels | Up to 32 |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output | 2 x HDMI, 2 x VGA |
| Maximum Display Resolution | 8K (single output) or dual 4K (simultaneous) |
| Decoding Capacity | Up to 2 channels at 32 MP or up to 32 channels at 1080p |
| SATA Bays | 16 |
| Maximum HDD Capacity | Up to 16 TB per HDD |
| RAID Support | RAID 0, 1, 5, 6, 10 and N+M hot spare |
| Special Camera Support | People counting, ANPR, fisheye |
| Streaming Technology | Advanced adaptive streaming for degraded network conditions |
| Form Factor | 3U rack-mount |
| HDD Included | No |
