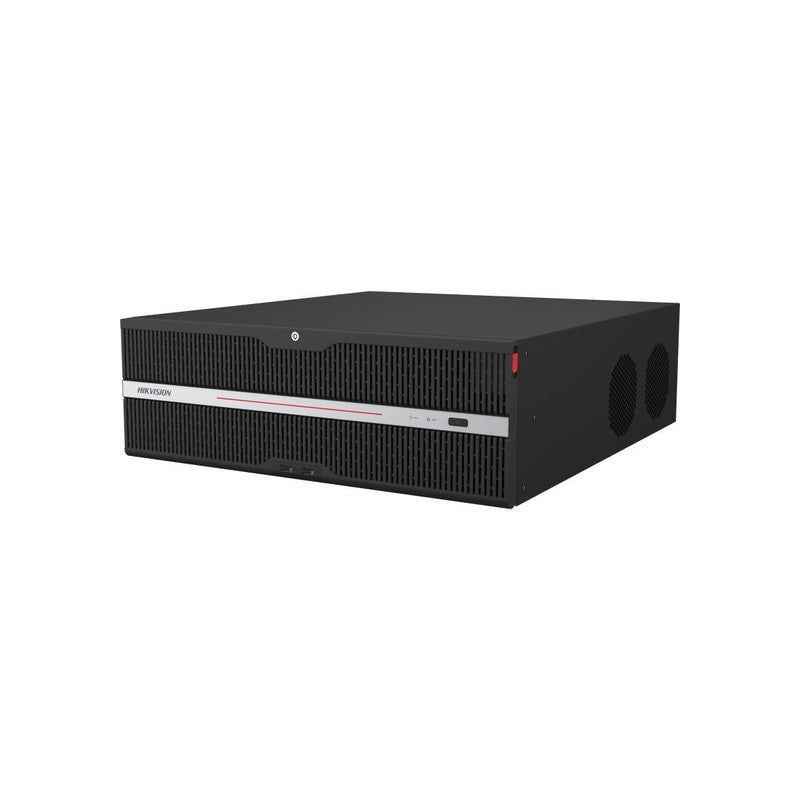

Hikvision Ds-96128nxi-s16r 3u NVR | 128-channel AI NVR With Acusense & Raid
SKU: DS96128NXIS16R
$7,535.76
The Hikvision DS-96128NXI-S16R is a 3U rackmount network video recorder from the Ultra S-Series, engineered for large-scale surveillance deployments requiring high-density storage and continuous uptime. This 128-channel AI NVR supports IP cameras at resolutions up to 32 MP and provides dedicated 8K video output via its HDMI3 port.
Key Features
- Supports up to 128 IP cameras with maximum resolution of 32 MP
- Features 16 SATA bays with support for RAID 0, 1, 5, 6, and 10 configurations
- Includes N+M hot spare capabilities to ensure storage integrity and data redundancy
- Integrates on-board AI analytics for facial recognition, perimeter protection, and video structuralization
- Delivers video output up to 8K resolution through a dedicated HDMI3 port
- Supports AcuSearch for rapid content-based retrieval of recorded footage
- Designed for 3U rackmount installation in critical infrastructure and municipal networks
Technical Specifications
| IP Camera Channels | Up to 128 channels, up to 32 MP per camera |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Incoming Bandwidth | 1280 Mbps (standard); 640 Mbps (RAID mode) |
| Outgoing Bandwidth | 1024 Mbps (standard); 512 Mbps (RAID mode) |
| Video Outputs | HDMI1 and HDMI2: up to 4K; HDMI3: up to 8K; HDMI4: 1080p; VGA: 1080p |
| Decoding Capability | 2 ch @ 32 MP, 4 ch @ 16 MP, 8 ch @ 8 MP, 16 ch @ 4 MP, 32 ch @ 2 MP |
| Synchronous Playback | 16 channels |
| On-NVR Analytics | Facial recognition, perimeter protection, video structuralization |
| Camera-Side Analytics Supported | Face recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, VCA |
| Face Library | Up to 64 libraries; up to 300,000 face images (max 10 GB total) |
| Storage Bays and RAID | 16 SATA slots; RAID 0, 1, 5, 6, 10; N+M hot spare; up to 20 TB per drive |
| Network Interfaces | 4 x RJ-45 (10/100/1000/2500 Mbps) |
| Remote Connections | Up to 256 simultaneous remote connections |
| I/O and Interfaces | 1 x eSATA, RS-232, RS-485, 2 x USB 2.0 (front), 4 x USB 3.0 (rear), 32 alarm inputs, 16 alarm outputs, audio I/O |
| Power Supply | 100-240 VAC; redundant power option; max 100 W (without HDDs) |
| Operating Temperature | -10 degrees C to 55 degrees C; humidity 10-90% non-condensing |
| Dimensions and Weight | 442 x 497 x 146 mm; max 12 kg (without HDDs) |
| Certifications | CE, CB, IC, RCM, UKCA, RoHS, WEEE |
