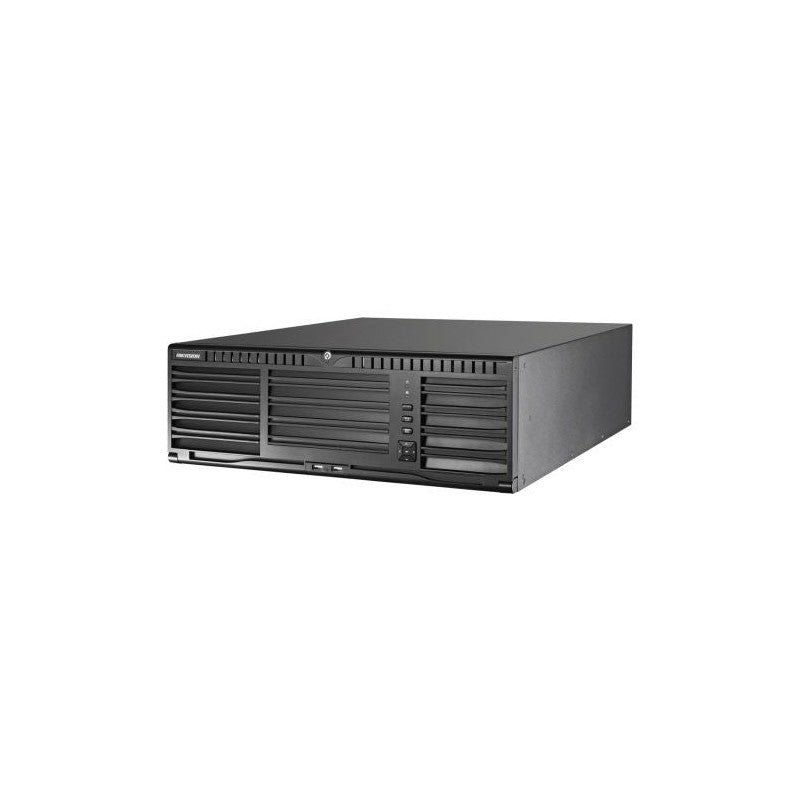

Hikvision Ds-96128-i24 128 Channel Nvr, 576mbps, Raid, 24 Bay, 3u, 4 X Nic, Dual Psu, No HDD
SKU: DS96128I24
$8,969.01
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-3e0310hp-e 8 Port Fast Ethernet Unmanaged POE Switch
$202.20
Hikvision Ds-3e1528p-ei 24-port Gigabit Smart Managed POE Switch – 370w POE Budget
$787.20
Upgrades Subtotal:
$0.00
The Hikvision DS-96128-I24 is a 128-channel, 3U rack-mount NVR engineered for large-scale IP surveillance deployments requiring high channel density and enterprise-grade reliability. It features 24 SATA interfaces, configurable RAID arrays, and dual redundant power supplies to support continuous operation in mission-critical environments.
Key Features
- 128-channel IP recording capacity, expandable to 256 channels with 768Mbps incoming bandwidth
- 24 SATA bays supporting RAID 0, 1, 5, 6, and 10 configurations with hot-swap capability
- Dual redundant power supplies (100-240VAC) ensuring continuous operation during power unit failure
- Four independent Gigabit Ethernet interfaces for network segmentation or bonding
- Supports recording resolutions from QCIF through to 12MP
- Dual 4K HDMI outputs for simultaneous operator and management-station monitoring
- 16 alarm inputs for integration with third-party access control or detection systems
Technical Specifications
| IP Video Inputs | 128 channels (expandable to 256) |
| Incoming Bandwidth | 768Mbps (expanded) |
| Outgoing Bandwidth | 512Mbps |
| Remote Connections | 256 |
| Recording Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Video Codec Support | H.265, H.264+, H.264, MPEG4, MJPEG |
| HDMI Output | 2-ch, up to 4K (4096×2160) at 60Hz |
| VGA Output | 1-ch, up to 1920x1080P at 60Hz |
| SATA Interfaces | 24 SATA interfaces supporting up to 16 HDDs (up to 8TB each) |
| External Storage | 2 x miniSAS (optional), 1 x eSATA |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 (up to 8 arrays) |
| Network Interfaces | 4 x RJ-45 10/100/1000Mbps self-adaptive Ethernet; 4 x 1000Mbps optional fibre (SFP) |
| Alarm Inputs / Outputs | 16-ch input / 4-ch output |
| Serial Interfaces | RS-232, RS-485, Keyboard |
| USB Ports | Front: 2 x USB 2.0; Rear: 2 x USB 3.0 |
| Power Supply | Dual redundant PSU, 100-240VAC, 550W |
| Chassis | 3U rack-mount |
| Dimensions | 442 x 494 x 146 mm |
| Weight (without HDD) | 16kg |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 10% to 90% |
| Hard Drives Included | None – sold without HDD |
