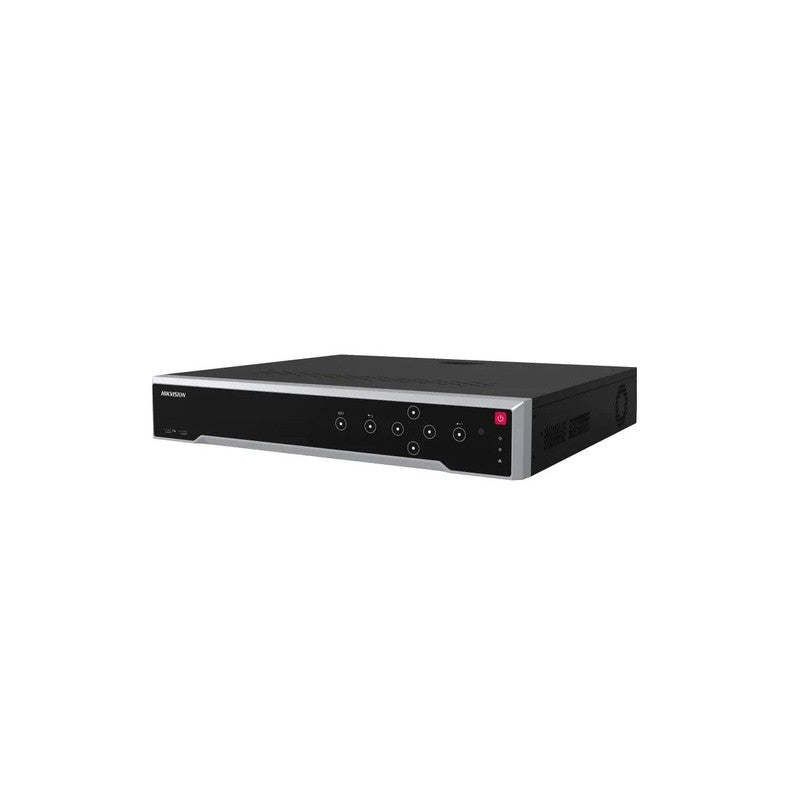

The Hikvision DS-7732NI-M4/16P is a 32-channel M-series network video recorder engineered for medium to large commercial CCTV installations requiring high channel density and substantial recording headroom. Housed in a 19-inch rack-mounted 1.5U chassis, this unit provides robust infrastructure for high-bandwidth surveillance networks.
Key Features
- 32-channel network video recording capacity
- 16 built-in PoE ports for direct camera power and data transmission
- 320 Mbps total recording bandwidth
- Supports 8K video resolution
- 4-bay internal hard drive configuration
- 1.5U 19-inch rack-mountable chassis design
- M-series architecture optimized for commercial deployments
Technical Specifications
| Model | DS-7732NI-M4/16P |
| Series | Hikvision M Series 8K NVR |
| IP Camera Inputs | 32 channels |
| Max Camera Resolution | Up to 32MP |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 400Mbps |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| HDMI 1 Output | Up to 8K, 7680 x 4320 / 30Hz |
| HDMI 2 Output | Up to 4K, 3840 x 2160 / 60Hz (limited to 1080p when HDMI 1 is set to 8K) |
| VGA Output | 1920 x 1080 / 60Hz |
| PoE Ports | 16 x RJ45 10/100Mbps |
| PoE Budget | Up to 200W total |
| PoE Standard | IEEE 802.3 af/at |
| Network Interface | 1 x RJ45 10/100/1000Mbps LAN |
| HDD Bays | 4 x SATA |
| Max Internal HDD Capacity | Up to 16TB per HDD (64TB total across 4 bays) |
| eSATA | 1 x eSATA interface |
| Synchronous Playback | 16-channel |
| Alarm Inputs / Outputs | 16 inputs / 9 outputs |
| USB Ports | 2 x USB 2.0 (front), 1 x USB 3.0 (rear) |
| RS-485 / RS-232 | 2 x RS-485, 1 x RS-232 |
| Chassis | 19-inch rack-mounted 1.5U |
| Dimensions | 440 x 389 x 72mm |
| Weight | 5kg (without HDD) |
| Power Supply | 100-240VAC, 50-60Hz |
| Operating Temperature | -10 degrees C to 55 degrees C |
