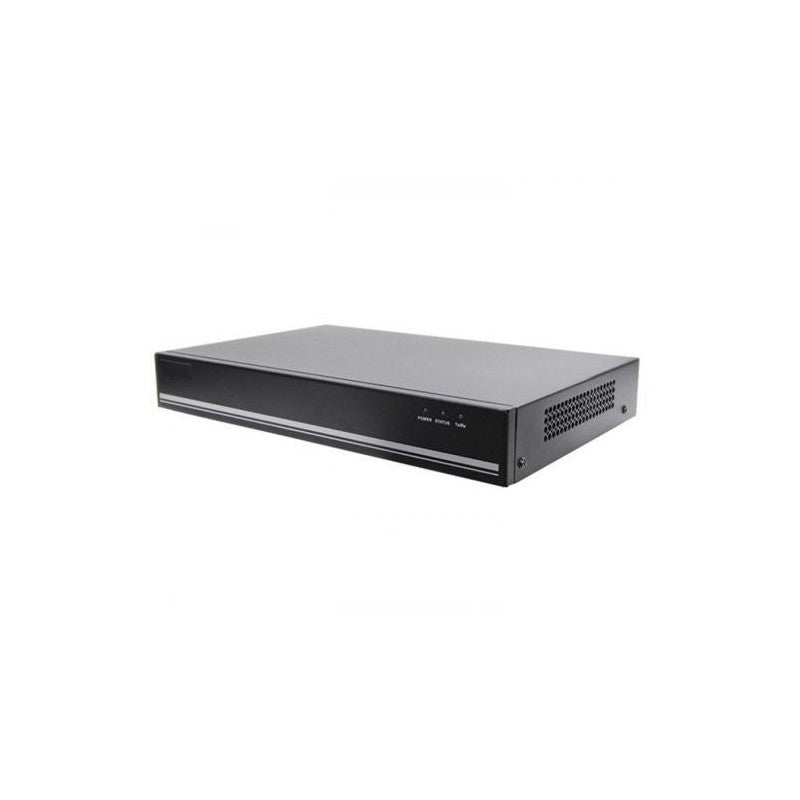

The Hikvision DS-6716HFI Encoder 16ch Video & Audio Input is a 16-channel encoder engineered for high-density surveillance environments requiring efficient network transmission. It supports multiple compression standards, including H.264, MPEG4, MPEG2, and MJPEG, enabling real-time encoding at up to 4CIF resolution.
Key Features
- 16-channel BNC video input and 16-channel line audio input with G.711 audio compression
- Supports H.264, MPEG4, MPEG2, and MJPEG encoding with frame rates up to 30 fps (NTSC) and 25 fps (PAL)
- Video bit rate adjustable from 32 Kbps to 3072 Kbps, with a maximum user-defined limit of 8192 Mbps
- Includes one RJ-45 10/100/1000 Mbps adaptive Ethernet interface for network connectivity
- Compatible with NAS, iSCSI, and IPSAN data storage modes, plus 32GB microSD support
- Features 16 alarm inputs, 4 alarm outputs, one RS-485, and one RS-232 serial interface
- Supports extensive network protocols including IPv4/v6, HTTPS, OnVIF, PSIA, and SNMPv1/v2c/v3
Technical Specifications
| Video/Audio input |
| Video Compression: |
H.264/MPEG4/MPEG2/MJPEG |
| Video input: |
16-ch,
BNC (1.0 Vp-p, 75 Ω) |
| Audio compression: |
G.711 |
| Audio input: |
16-ch,
Line input interface
(2.0 Vp-p, 1 kΩ) |
| Two-way audio: |
1-ch, 3.5 mm audio (2.0 Vp-p, 1 kΩ) |
|
| Video/Audio output |
| Audio output: |
1-ch, 3.5mm interface (Linear, 600 Ω) |
| Encoding resolution: |
4CIF/2CIF/CIF/QCIF |
| Frame rate: |
H.264/MPEG4/MPEG2 encoding: 25 fps (P) / 30 fps (N); MJPEG encoding: 15 fps |
| Video bit rate: |
32 Kbps ~ 3072 Kbps, or user defined (Max. 8192 Mbps) |
| Audio bit rate: |
64 Kbps |
| Dual Stream: |
Support |
| Stream Type: |
Video/ Video&Audio |
|
| Network protocols |
| Protocols Supported: |
IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM,
SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP,TCP, UDP, IGMP, ICMP,DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, HIKCGI, netFilter |
|
| Data storage |
| Type: |
NAS, iSCSI, IPSAN |
| Capacity: |
32G for microSD storage |
|
| External interface |
| Network interface: |
1 RJ-45 10 M / 100 M /1000 Mbps adaptive
Ethernet interface |
| Serial interface: |
1 half-duplex RS-485 interface
1 RS-232 interface |
| Alarm in: |
16 |
| Alarm out: |
4 |
|
| General |
| Power supply: |
12 VDC |
| Consumption: |
≤ 22W |
| Working temperature: |
-10°C~+55°C(14°F~131°F) |
| Working humidity: |
10%~90% |
| Dimension(W×D×H): |
440 × 45 × 274mm |
| Weight(without HDD): |
≤ 4 Kg |
|
📄
