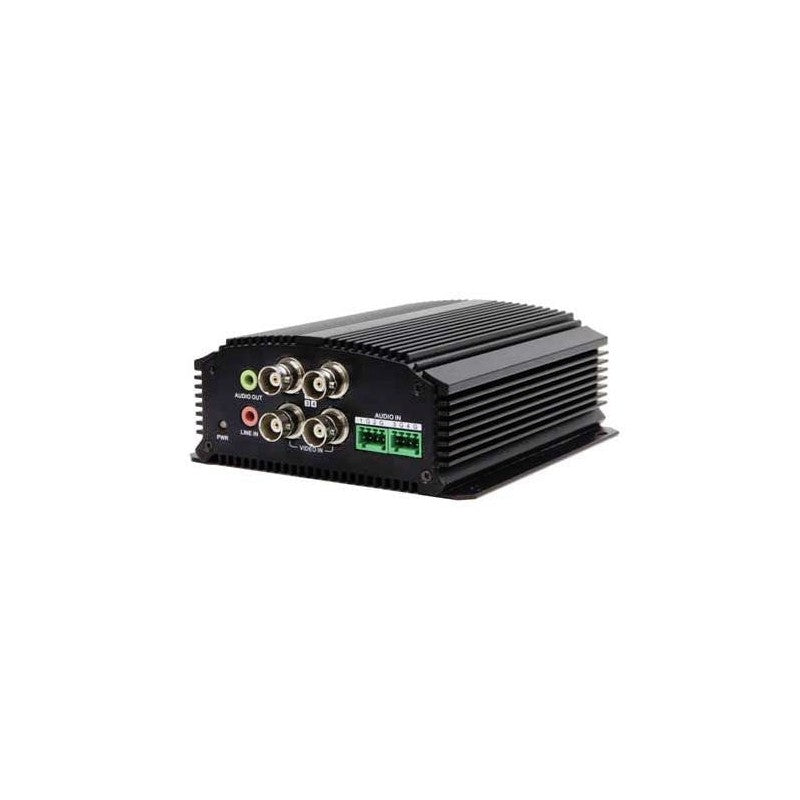

Hikvision Ds-6704huhi 4ch Encoder Hdtvi/hdcvi/ahd/cvbs, Up To 5MP At 12fps, H.265/h.264

The Hikvision DS-6704HUHI is a 4-channel encoder designed to convert analog video signals from HDTVI, HDCVI, AHD, and CVBS sources into a digital network stream. It supports resolutions up to 5MP at 12fps and utilizes H.265 and H.264 compression standards to optimize bandwidth and storage efficiency for surveillance applications.

Key Features

• 4-channel BNC analog video input supporting HDTVI, HDCVI, AHD, and CVBS formats with coaxitron connection compatibility.
• Main stream encoding up to 5MP at 12fps, 4MP at 15fps, and 1080p at 25fps (PAL) or 30fps (NTSC).
• Video compression using H.265+, H.265, H.264+, and H.264 standards with a bitrate range of 32 Kbps to 10 Mbps.
• Network connectivity via a single RJ45 10M/100M self-adaptive Ethernet interface with ONVIF profile S support.
• Local storage capability through a Micro SD card slot supporting capacities up to 128 GB.
• Audio processing with 4-channel input, 1-channel linear output, and 1-channel two-way audio via RCA connectors.
• Power consumption of 15W or less with a 12 VDC power supply requirement.
