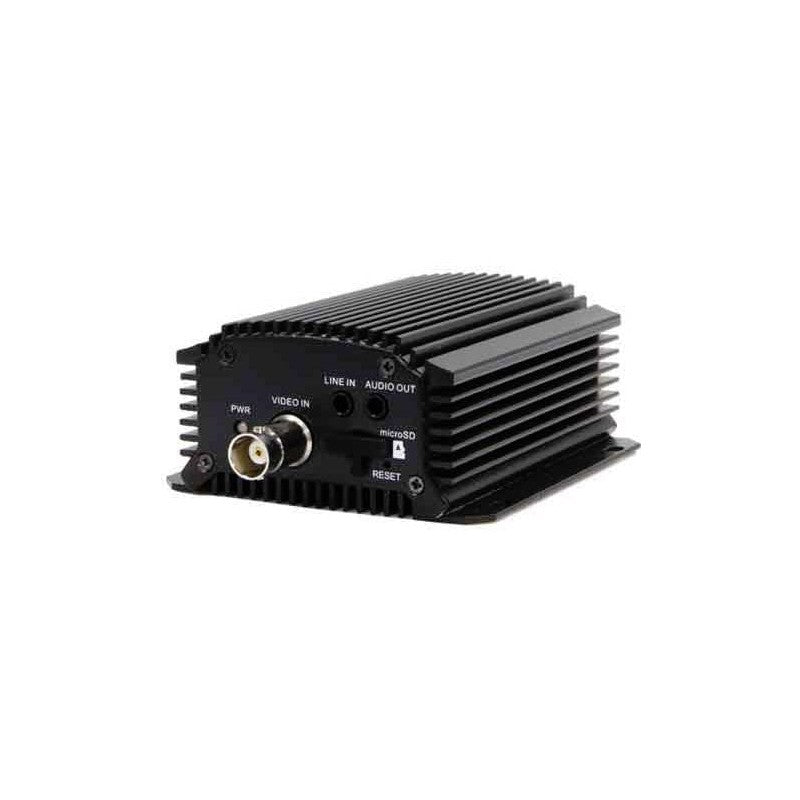

The Hikvision DS-6701HFI is a single-channel network video encoder designed to integrate analog surveillance sources into IP-based security systems. It supports H.264, MPEG4, MPEG2, and MJPEG compression standards, delivering real-time encoding at up to 4CIF resolution with frame rates of 25 fps (PAL) or 30 fps (NTSC).
Key Features
- 1-channel BNC video input (1.0 Vp-p, 75 Ω) and 1-channel 3.5mm audio input (2.0 Vp-p, 1 kΩ) with G.711 audio compression
- Single RJ-45 10/100 Mbps adaptive Ethernet interface with Power over Ethernet (PoE) support for simplified installation
- Dual-stream encoding with video bit rates ranging from 32 Kbps to 3072 Kbps, or user-defined up to 8192 Mbps
- Compatible with NAS and IPSAN data storage, supporting up to 4 TB per disk and 32 GB via microSD card
- Includes 1 RS-485 serial interface, 1 alarm input, and 1 alarm output for system integration and control
- Supports extensive network protocols including IPv4/v6, OnVIF, PSIA, SNMPv1/v2c/v3, RTSP, and HIKCGI
- Compact 80 × 39 × 90 mm form factor with a weight of ≤ 0.5 Kg, operating within a temperature range of -10°C to +55°C
Technical Specifications
| Video/Audio input |
| Video Compression: |
H.264/MPEG4/MPEG2/MJPEG |
| Video input: |
1-ch,
BNC (1.0 Vp-p, 75 Ω) |
| Audio compression: |
G.711 |
| Audio input: |
1-ch, 3.5mm interface (2.0 Vp-p, 1 kΩ) (LINE IN) |
| Two-way audio: |
1-ch, 3.5 mm audio (2.0 Vp-p, 1 kΩ)
(Line in) |
|
| Video/Audio output |
| Audio output: |
1-ch, 3.5mm interface (Linear, 600 Ω) |
| Encoding resolution: |
4CIF/2CIF/CIF/QCIF |
|
| Frame rate: |
25 fps (P) / 30 fps/N |
| Video bit rate: |
32 Kbps ~ 3072 Kbps, or user defined (Max. 8192 Mbps) |
| Audio bit rate: |
64 Kbps |
| Dual Stream: |
Support |
| Stream Type: |
Video/ Video&Audio |
|
| Network protocols |
| Protocols Supported: |
IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnPTM,
SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP,TCP, UDP, IGMP, ICMP,DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, HIKCGI, netFilter |
|
| Data storage |
| Type: |
NAS, IPSAN, microSD |
| Capacity: |
Up to 4 TB capacity for each disk, and 32GB for microSD storage |
|
| External interface |
| Network interface: |
1 RJ-45 10 M / 100 Mbps adaptive Ethernet
interface (PoE) |
| Serial interface: |
1 half-duplex RS-485 interface |
| Alarm in: |
1 |
| Alarm out: |
1 |
|
| General |
| Power supply: |
12 VDC, or PoE |
| Consumption: |
≤ 5W |
| Working temperature: |
-10°C~+55°C(14°F~131°F) |
| Working humidity: |
10%~90% |
| Dimension(W×D×H): |
80 × 39 × 90 mm |
| Weight(without HDD): |
≤ 0.5 Kg |
|
📄
