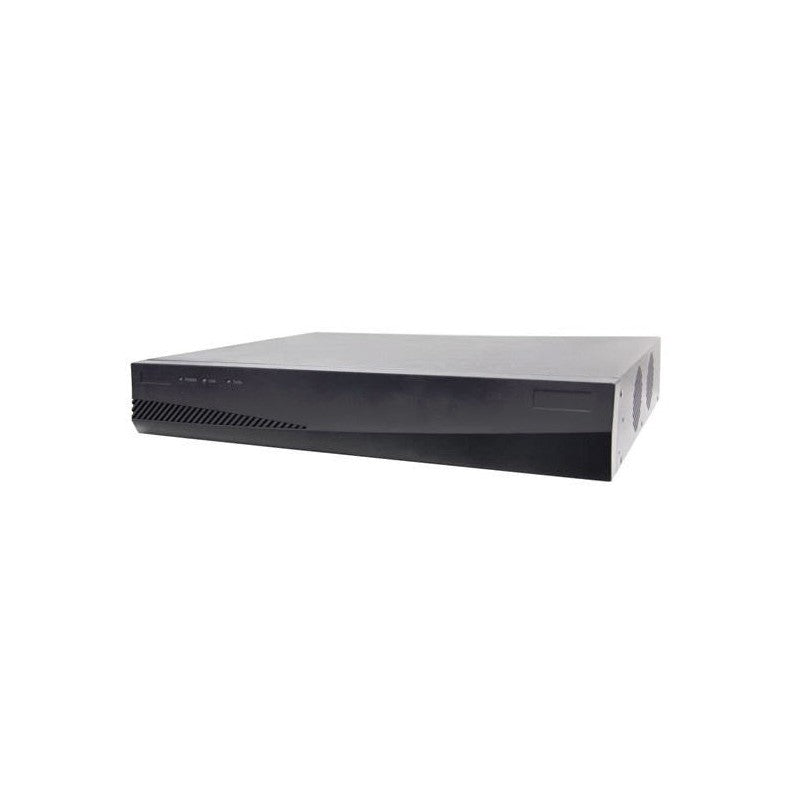

Hikvision Ds-6308di-t Decoder 8ch Bnc Output
SKU: DS6308DIT
$2,614.74
The Hikvision DS-6308DI-T is an 8-channel network video decoder engineered for the hardware decoding of IP video streams. It supports standard H.264 and MPEG4 formats, providing simultaneous VGA and composite outputs for flexible integration into existing surveillance infrastructure.
Key Features
- Decodes up to 8 channels of video at 720P resolution with frame rates of 25 fps (PAL) or 30 fps (NTSC)
- Provides 8-channel BNC composite video output (1.0 Vp-p, 75 Ω) and 4-channel VGA output supporting resolutions up to 1280×1024
- Compatible with standard H.264, MPEG4, and Hikvision DVR/DVS/Network Cameras
- Supports variable bit rate and frame rate, as well as dynamic and cycle decoding modes
- Includes 1-ch two-way audio input and 8-ch audio output via BNC (Linear, 600 Ω)
- Features 1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-232, and 1 RS-485 interface for PTZ control
- Equipped with 8 alarm inputs and 8 alarm outputs for system integration
- Powered by 12 VDC with a maximum power consumption of 40 W
Technical Specifications
| Video/Audio input | |
| Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) |
| Video/Audio output | |
| VGA output | 4-ch |
| Resolution:1280×1024 /60 Hz, 1280×720 /60 Hz,1024×768 /60 Hz | |
| Video output | 8-ch BNC (1.0 Vp-p, 75 Ω) |
| Decoding resolution | 720P / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Frame rate | 720P: 25 fps (P) / 30 fps (N) |
| Audio output | 8-ch, BNC (Linear, 600 Ω) |
| Stream type | Video, Video & Audio |
| External interface | |
| Network interface | 1, RJ45 10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1 RS-232 interface (for parameters configuration, maintenance , transparent channel); 1 RS-485 |
| interface (for PTZ control) | |
| Alarm in |
8 |
| Alarm out |
8 |
| General | 12 VDC |
| Power supply | ≤ 40 W |
| Consumption | 10 °C ~ +55 °C |
| Working temperature | 10% ~ 90% |
| Working humidity | 440 x 44.5 x 320 mm |
| Dimensions (W × D × H) | ≤ 5 kg |
| Weight(without HDD) |
