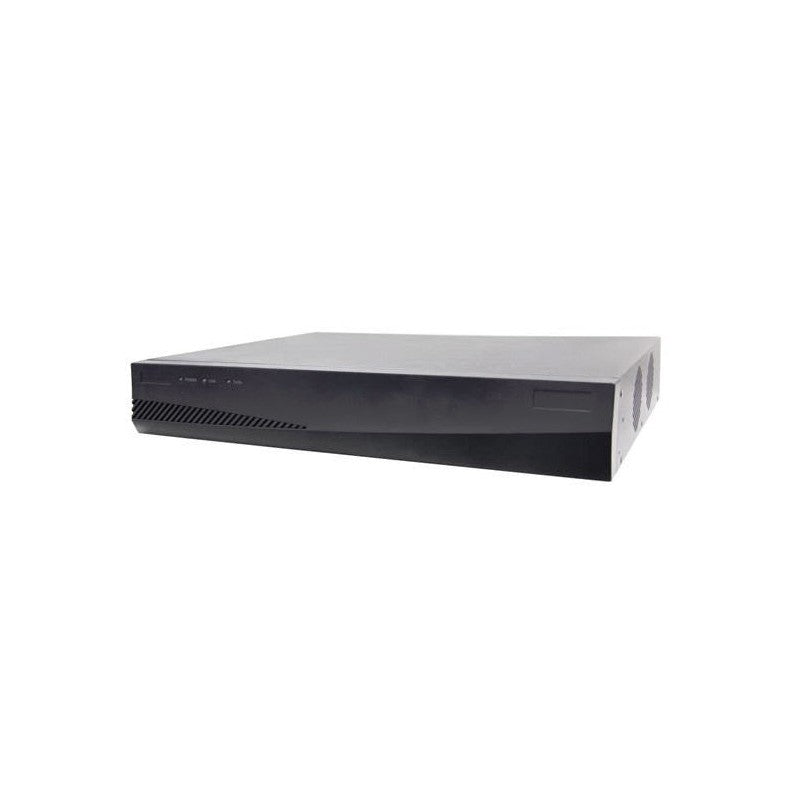

The Hikvision DS-6304DI-T is a 4-channel video and audio decoder engineered on the TI DM648 platform to decode compressed streams from Hikvision DVRs, DVS units, or other encoders. It is designed for IP network connectivity, enabling the display of distributed video surveillance systems on TV walls with stable and reliable performance.
Key Features
- Decodes up to 4 channels at 720P, 8 channels at 4CIF, or 16 channels at CIF resolution
- Supports H.264, MPEG4, MPEG2, and private video stream formats
- Features 4-channel CVBS output and 2-channel VGA output with resolutions up to 1920×1080
- Includes 2-channel RCA audio output and 1-channel two-way audio via 3.5mm connector
- Equipped with a 10/100/1000 Mbps self-adaptive Ethernet interface for network connectivity
- Provides 4 alarm inputs and 4 alarm outputs for system integration
- Supports multi-user management for up to 32 users with multi-level access control
Technical Specifications
| Video/Audio output |
| Audio output: |
2-ch, RCA connector
4-ch, DB15 connector×1 |
| CVBS Output: |
4-ch |
| VGA Output: |
2-ch VGA output, resolution:
1920×1080@60/50Hz, 1600×1200@60Hz,
1280×1024@60Hz,
1280×720@50/60Hz, 1024×768@60Hz |
| Video Decoding Standard: |
H.264/MPEG4/MPEG2/Private |
| Video Decoding Channels: |
4-ch at 720P 8-ch at 4CIF 16-ch at CIF resolution |
| Multi-division Display Mode: |
1/4/9/16 |
| Audio Decoding Standard: |
G.722/G.711A/G.711U/MPEG2-L2/ACC |
| Two-way audio: |
1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ) |
|
| External interface |
| Network interface: |
1; 10/100/1000 Mbps self-adaptive Ethernet interface |
| Serial interface: |
1 RS-232 (DB9), 1 RS-485 |
| Alarm in: |
4 |
| Alarm out: |
4 |
|
| General |
| Power supply: |
100~240VAC |
| Consumption: |
≤50W |
| Working temperature: |
-10°C~+55°C(14°F~131°F) |
| Working humidity: |
10%~90% |
| Dimension(W×D×H): |
440(W)× 340(D)× 70mm(H) |
| Weight(without HDD): |
≤5.2 kg |
|
📄
