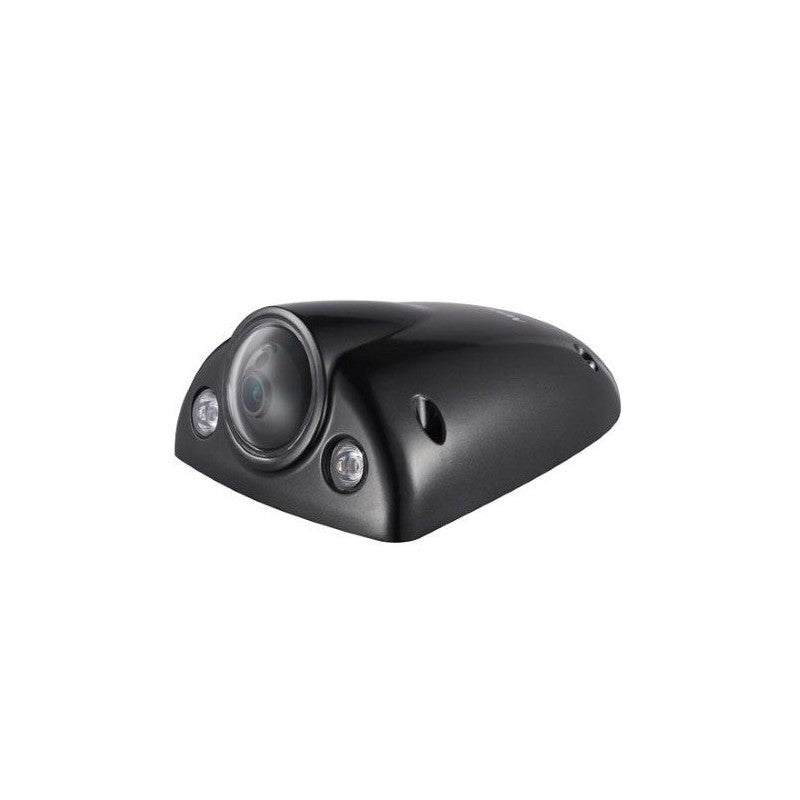

Hikvision Ds-2xm6522g1 2MP Mobile Network Camera
SKU: DS2XM6522G1
$540.33
The Hikvision DS-2XM6522G1 2MP Mobile Network Camera is a ruggedised mini dome unit engineered for vehicle-mounted and mobile transport installations. Designed to withstand demanding transit environments, this device offers robust protection against submersion, high-pressure wash-downs, and physical impact.
Key Features
- 2MP resolution with a 1/2.8″ progressive scan CMOS sensor and 120 dB True WDR for high-contrast lighting conditions
- IP68, IP69K, and IK10 protection ratings for resistance against submersion, high-pressure water jets, and physical impact
- Operational temperature range of -40°C to 75°C, supported by a built-in heater for extreme cold environments
- Built-in IR array with a 30 m range and minimum illumination of 0.01 Lux at F1.2
- H.265+ compression to optimise bandwidth and storage requirements for mobile recording units
- Onboard Micro TF slot supporting up to 256 GB of local recording
- Available in 2.8 mm, 4 mm, or 6 mm fixed lens configurations to suit various field-of-view requirements
- Multiple power and connector options including PoE RJ45, M12 PoE, DC coaxial, and Molex for flexible vehicle harness integration
Technical Specifications
| Resolution | 2MP, 1920 x 1080 (1080p) |
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Lens Options | 2.8 mm (F1.6), 4 mm (F1.6), 6 mm (F1.6) |
| Horizontal Field of View | 105 degrees (2.8 mm), 87 degrees (4 mm), 53 degrees (6 mm) |
| Minimum Illumination | 0.01 Lux at F1.2 (AGC ON); 0 Lux with IR |
| IR Range | Up to 30 m; IR wavelength 850 nm |
| Wide Dynamic Range | 120 dB true WDR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Max Frame Rate | 25/30 fps at 1080p |
| Max Bit Rate | 12 Mbps (main stream) |
| Local Storage | Built-in Micro TF card slot, up to 256 GB |
| Power Options | PoE 802.3af (RJ45 or M12); DC 9-36 V (select variants); Molex (select variants) |
| Max Power Consumption | 10 W |
| Protection Rating | IP68, IP69K, IK10 |
| Housing Material | Metal |
| Operating Temperature | -40 degrees C to 75 degrees C (with built-in heater) |
| Protocols | TCP/IP, HTTP(S), RTSP, ONVIF Profile S/G/T, HIKSDK, ISAPI |
| Dimensions | Approx. 163.7 x 122.6 x 65.1 mm |
| Weight | Approx. 905 g |
| Standards Compliance | EN50155 (select variants); ONVIF Profile S, G, T |
