Hikvision Ds‑2xe6845g0-izhs(b) | 4 Mp Explosion-proof Bullet Camera
SKU: DS2XE6845G0IZHS
$10,779.00

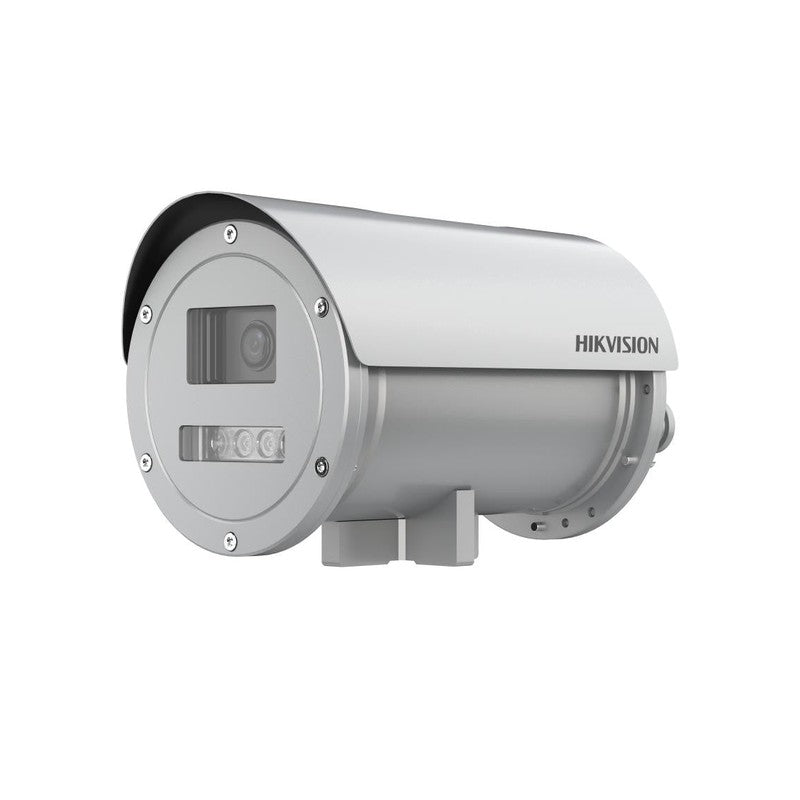

The Hikvision DS-2XE6845G0-IZHS(B) is a 4 MP explosion-proof bullet camera engineered for hazardous industrial environments, specifically Zone 1/2 gas and Zone 21/22 dust classified areas. Featuring a 316L stainless steel enclosure with ATEX and IECEx certification, this unit is designed to contain internal ignition sources and prevent propagation into flammable atmospheres.
Key Features
- 4 MP resolution with 1/1.8″ progressive scan CMOS sensor
- DarkFighter technology enables colour imaging down to 0.0009 lux and 0 lux operation with IR active
- ATEX and IECEx certified for Zone 1/2 gas and Zone 21/22 dust hazardous areas
- Dual motorised varifocal lens options: 2.8-12 mm (F1.4) for wide coverage or 8-32 mm (F1.7) for long-range monitoring
- DORI detection range up to 400 m with the 8-32 mm lens configuration
- IP68 and NEMA 4X rated for full water submersion resistance and corrosion protection
- Direct 100-240 VAC power acceptance
Technical Specifications
| Model | DS-2XE6845G0-IZHS(B) |
| Resolution | 4 MP (2688 x 1520) |
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Minimum Illumination | 0.0009 lux (colour), 0 lux (IR active) |
| Lens Options | Motorised varifocal 2.8-12 mm (F1.4) or 8-32 mm (F1.7) |
| IR Illumination Range | Up to 60 m (2.8-12 mm lens), up to 100 m (8-32 mm lens) at 850 nm |
| DORI Detection Range | Up to 400 m (8-32 mm lens) |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Concurrent Streams | Up to 5 |
| Housing Material | 316L stainless steel |
| Ingress Protection | IP68, NEMA 4X |
| Hazardous Area Certification | ATEX, IECEx – Zone 1/2 (gas), Zone 21/22 (dust) |
| UL Classification | UL Class I Zone 1 AEx db IIC T6 / Zone 21 Ex tb IIIC T80°C Db |
| Additional Certifications | CB, CE, BIS |
| Power Input | 100-240 VAC |
| Audio | 1 x mono audio input, 1 x mono audio output (G.711, AAC-LC, MP3) |
| Network Protocols | TCP/IP, HTTPS, FTP, SNMP, 802.1X, IPv6, QoS |
| ONVIF Support | Profile S, G, T |
| Lead Time | 70 days from order confirmation |
