Hikvision Ds-2xe6242f-is 4MP Explosion Proof 316l Stainless Steel Camera, 6mm Lens, 30m I
SKU: DS2XE6242FIS
$5,496.45
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-1273zj-140b-y Wall Mount Bracket With Junction Box
$105.09
$99.84
Hikvision Sus316l Ds-4610zj-gsac Anti-corrosion Pendant Mount Bracket With Stainless Steel Build, PTZ Camera Support, Outdoor Installation
$582.45
Upgrades Subtotal:
$0.00

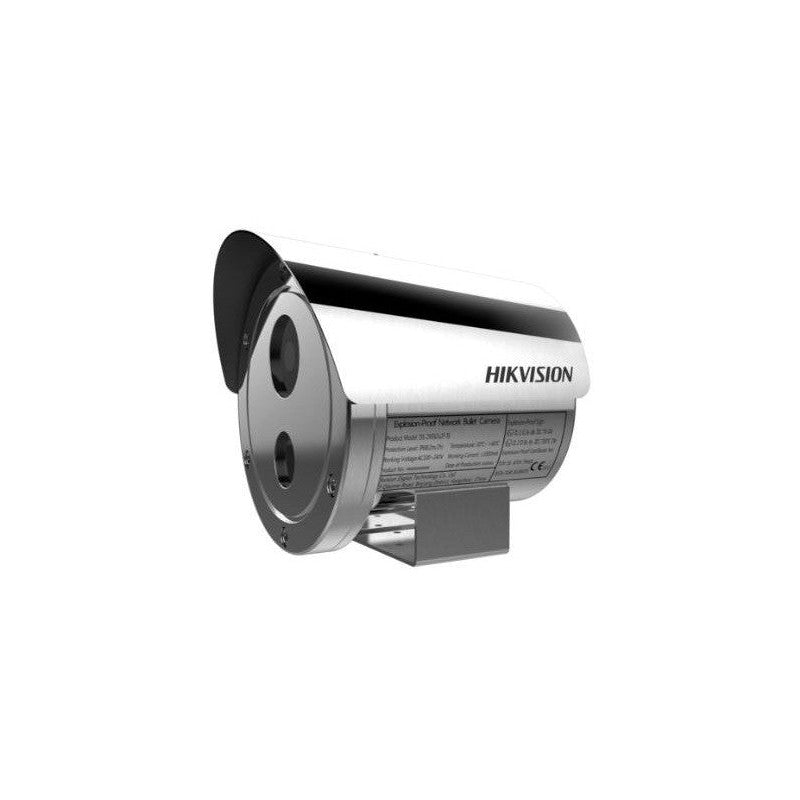

The Hikvision DS-2XE6242F-IS is a 4MP fixed bullet network camera housed in a 316L stainless steel enclosure, engineered to ATEX and IECEx explosion-proof certification standards for Zone 1 and Zone 21 hazardous area deployment. Rated II 2 G D Ex db IIC T6 Gb, this unit is designed for chemical processing facilities, oil and gas plant perimeters, and grain handling sites where standard surveillance equipment is prohibited.
Key Features
- 4MP resolution (2560×1440) at 25fps using a 1/3″ progressive scan CMOS sensor
- 6mm fixed lens providing a 55.4-degree horizontal field of view
- 30m EXIR illumination range with minimum illumination of 0.01 Lux at F1.2
- 316L stainless steel enclosure with anti-corrosion spray treatment for chemical and salt spray resistance
- IP68 and IK10 protection ratings for dust, water, and impact resistance
- Operating temperature range of -30°C to +60°C
- ATEX and IECEx certified for safe operation in explosive gas and combustible dust environments
Technical Specifications
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Lens (This Variant) | 6mm fixed, 55.4-degree horizontal field of view |
| Lens Mount | M12 |
| IR Illumination Range | 30m EXIR |
| Minimum Illumination | 0.01 Lux @ F1.2 AGC ON; 0 Lux with IR active |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265+/H.265/H.264+/H.264 (main stream); H.265/H.264/MJPEG (sub stream) |
| Frame Rate | 25fps at up to 2560×1440 (50Hz); 24fps at up to 2560×1440 (60Hz) |
| On-Board Storage | microSD/SDHC/SDXC slot, up to 128GB; ANR supported |
| Alarm Inputs/Outputs | 2 alarm inputs, 2 alarm outputs |
| Network Interface | 1x RJ45 10/100M self-adaptive Ethernet |
| Power Supply | AC 100V to 240V terminal block; PoE 802.3af Class 3 |
| Enclosure Material | 316L stainless steel with anti-corrosion treatment |
| Protection Rating | IP68 / IK10 |
| Explosion-Proof Certification | ATEX: II 2 G D Ex db IIC T6 Gb / Ex tb IIIC T80°C Db IP68; IECEx: Ex db IIC T6 Gb / Ex tb IIIC T80°C Db IP68 |
| Operating Temperature | -30°C to +60°C; Humidity 95% or less (non-condensing) |
| Dimensions | 221.3 x 174 x 172mm |
| Weight | 7.4kg |
| API/Protocol | ONVIF Profile S, Profile G; ISAPI |
